Allison 1000 Pass Through Connector Seal, Duramax | 2001-2019

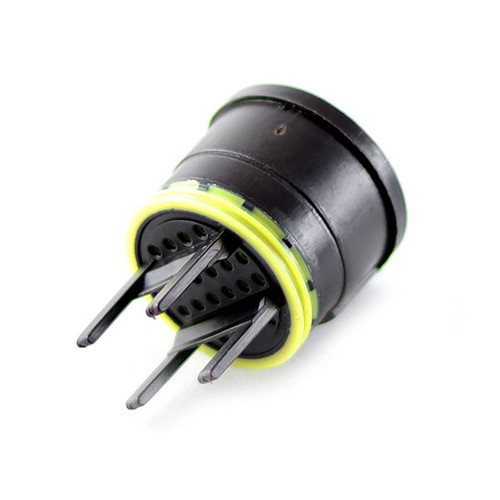

Transmission fluid leaking at the wire harness? The pass through connector seal on the Allison 1000 can degrade with age and let transmission fluid get into the electrical connection. This can cause erratic transmission operation, trouble codes, and can even put the transmission into limp mode. This listing is a new pass through connector seal (GM 15317565) for 2001-2019 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L Duramax diesel (LB7, LLY, LBZ, LMM, LML and L5P), 2006-2016 Chevy Express and GMC Savana vans with the 6.6L Duramax (LLY, LMM and LGH), and 2001-2007 Silverado and Sierra 2500HD and 3500HD trucks with the 8.1L gas engine, all with the Allison 1000 transmission.

Features

• New pass through connector seal (GM 15317565)
• Fits the Allison 1000 in 2001-2019 Duramax trucks, 2006-2016 Duramax vans and 2001-2007 8.1L gas trucks

What's Included

• (1) Pass through connector seal (15317565)

When to Replace

Replace the seal if you find transmission fluid in the harness connector at the transmission, or fluid leaking around the connector on the outside of the case.

Before You Order

• Allison 1000 only: this seal fits the 2001-2019 Allison 1000. It does not fit the 2020 and newer 10L1000.
• Connector body not included: if the connector body or its O-ring is damaged, get the Pass Through Connector Seal and Body Kit.

Installation Tips

• Clean any fluid out of both halves of the connector before reconnecting the harness.
• Owners on the DuramaxDiesels forum report that if fluid has already wicked into the wiring, a new seal may not cure the symptoms, and the internal wire harness may also need to be replaced.

Installation Resources

• Product Spotlight: Allison Pass Through Connector Seal (Merchant Automotive YouTube)

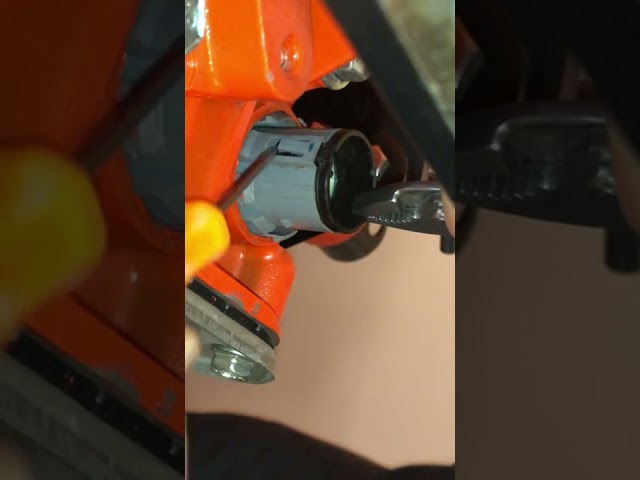

• How to remove Pass Through Connector seal from Allison 1000 Transmission

Related Parts

• Allison 1000 Pass Through Connector Seal and Body Kit
• Allison 1000 External Spin On Filter, 2001-2019
• Allison 1000 Deep Filter Lock, Duramax
• Transynd 668 Full Synthetic Transmission Fluid, 1 Gallon

Frequently Asked Questions

What are the signs of a leaking pass through seal?
Transmission fluid in the harness connector or around the outside of the connector. A leaking seal can cause erratic shifting, trouble codes or limp mode.

Does this include the connector body?
No. This listing is the seal only. For the seal and connector body together, see the Pass Through Connector Seal and Body Kit.

Does it fit my 2020 or newer truck?
No. 2020 and newer trucks use the 10L1000 transmission.
