Transfer Case Pump Upgrade Kit | 1998-2007

31 Reviews
SKU: 10001
$75.00

Earn 7500 Boost Points

Description

The Merchant Automotive Transfer Case Pump Upgrade is the best upgrade you can perform on your 1998 to early-2007 GM transfer case by completely preventing the ever increasing problem of pump rub and catastrophic transfer case fluid loss. The kit can be installed proactively in a transfer case that has not yet succumb to a pump rub failure as a preventative maintenance measure. If your transfer case has already had a pump rub failure the MA Transfer Case Pump Upgrade can be installed as part of your repair to prevent future failure.



KIT INCLUDES:



To view/download installation instructions click here.



To view the Merchant Automotive installation video click here.



To view the Truck U segment on the Merchant Automotive Transfer Case Pump Rub kit click here.



What is a Transfer Case “Pump Rub” Failure?



GM transfer cases used from 1998 through early 2007 use a gear pump inside the case that is driven off the mainshaft. The pump forces oil to the planetary as well as the drive sprocket sleeve. Because the pump is driven by the shaft, the housing of the pump must "float" in the rear housing. There are tabs around the pump housing that fit into spots in the rear housing to locate the pump housing and prevent it from spinning inside the case with the mainshaft. Over time, the pump tabs can start to wear on the rear housing. GM installed a spring steel clip in the housing intended to prevent wear, but the clip can break and be rendered useless.



Since the pump housing is aluminum and is a harder material then the magnesium rear housing, it can wear a hole in the rear housing and cause a very small leak. This leak is frequently high enough on the case that it typically will not leak when vehicle is not moving and therefore not leaving any drops on the ground; it will however leak while the vehicle is in motion. Unfortunately, since the transfer case does not have a low fluid indicator the pump rub failure is often not found until there is transfer case damage from running the case out of fluid.



Avoid costly repairs to your transfer case by preventing “Pump Rub” by installing a Merchant Automotive Transfer Case Pump Upgrade kit in your transfer case today, before it happens to your vehicle.



With installation of this kit, you will have a LIMITED LIFETIME WARRANTY against pump rub. If your case ever wears a hole in the new rear housing with the upgrade installed. We will buy you a new transfer case. However, if you already have a hole in your case, we recommend installing a new rear housing for a complete repair. The MA Lifetime Warranty will only apply to installations with a new rear housing.





FAQ:


I have a 2007 or newer GM 4X4. Do I have to worry about “pump rub” failure in my transfer case?



No, GM changed the transfer case design and we have not seen evidence of “pump rub” failures in 2007 and newer GM trucks or SUVs.





When is the best time to install the Merchant Automotive Transfer Case Pump Upgrade kit?



Honestly, any time is a good time to install the Merchant Automotive Pump Upgrade kit in a transfer case that doesn’t have it yet. But, the BEST time to install one is NOW, do it before the rear case half has a hole worn through it due to an internal “pump rub” failure.



What do I do with the OEM anti rattle clip when installing the pump upgrade?



Discard the factory clip during installation of the MA Transfer Case Pump Upgrade kit. It has been designed and precision machined to work with the clip removed.





What other parts will I need to install the pump upgrade kit?



We tried to make the kit all-inclusive for a basic installation when it is being installed as preventative measure. If it is being installed as part of a repair or after pump rub has occurred, there is no real way to know the extent of the damage inside the case until it is completely disassembled. In many instances, as long as the case has not run out of fluid, it can be repaired with a new rear housing and seal and prevented from ever happening again using the upgrade kit. Regardless of the reason for installing this upgrade, you will need to refill the transfer case with lubrication. We recommend our Performance Transfer Case Fluid for use in ALL transfer cases and have seen improved performance over the factory recommended ATF or other alternate oil recommendations.





I hear a grinding noise at low speed after installing the pump upgrade kit. What could that be?



A low speed grinding noise is most commonly caused by the rear output bearing snap ring not being fully seated causing the bearing to move out of proper alignment. Verify that the snap ring is fully engaged and properly seated in the rear housing and the locating groove in the bearing.





What would cause a speed sensor correlation code after installing the pump upgrade?



A speed sensor correlation code is often accompanied by a low speed grinding noise and is frequently caused by the rear output bearing snap ring not being fully seated causing the bearing to move out of proper alignment. Verify that the snap ring it fully engaged and properly seated in the rear housing and the locating groove in the bearing.



My truck drops into neutral unexpectedly, what could be the problem?



This could be a speed sensor issue caused by excessive play in the mainshaft causing contact between the speed sensor and the tone wheel or simply allowing too much or too little air gap for correct readings. In addition to checking the speed sensor and tone wheel for contact damage the rear output bearing and bearing pocket in the rear case half for wear that allows excessive shaft play.





Can the front input bearing effect the rear output seal?



Yes, excessive thrust play from a worn front input bearing or snap ring will allow thrust movement in the mainshaft which could lead to the rear output seal and bushing "walking" out of the case half.





Which direction does the tone wheel face when installing it in the transfer case?



The tone wheel has a stepped edge on one side, be sure to position the wheel so that the stepped edge faces the transfer case pump.





Do I need to replace the speed sensor when replacing the tone wheel?



If the tone wheel was damaged from making contact with the speed sensor both will need to be replaced. Carefully examine the speed sensor to verify if any contact has been made and if there has the sensor should be replaced.





What fluid should I use in the transfer case and how much is needed?



We recommend our Performance Transfer Case Fluid for use in ALL transfer cases and have seen improved performance over the factory recommended ATF or other alternate oil recommendations. Two-quarts are required to fill the NP261HD, NP263HD, NP261XHD and NP263XHD transfer cases.





How tight do I tighten the transfer case mounting nuts for the NP261XHD and NP263XHD at the transmission output adapter?



The factory recommended torque specification is 37 ft-lbs for the transfer case adapter nuts for both the NP261XHD and NP263XHD.





How tight do I tighten the transfer case assembly bolts for the NP261XHD and NP263XHD securing the case halves together?



The factory recommended torque specification is 27 ft-lbs for the transfer case assembly bolts for both the NP261XHD and NP263XHD.





How do I know if the Blocking Ring is worn inside the transfer case?



The most common trait for a transfer case with a worn Blocking Ring assembly is a grinding noise heard when engaging 4WD.





How do I know which Range Hub my transfer case has?



All floor shift manual transfer cases (NP261HD and NP261XHD) use the 401645BK Range Hub; additionally NP263HD and NP263XHD transfer cases with the older style range hub with integrated molded wear pads on the Range Forks will also use the 401645BK Range Hub. If the Range Forks have replaceable wear pads the 401645K Range Hub is used.





My Range Fork has molded wear pads, what do I do?



The Range Fork and Range Hub that used the molded pads are no longer available. You will need to replace both the Range Fork MA #41819 and Range Hub MA #401645K and use a set of replaceable pads for the Range Fork MA #37284-2 to complete your repair.





Can I replace the front output shaft seal with the transfer case installed in the vehicle?



Yes, after removing the front driveshaft the seal can be removed and replaced without removing the transfer case from the vehicle. Some people feel that it can be easier to remove the transfer case and replace the seals on a workbench though.





Does the transfer case need to be removed to change the front output seal?



No, it does not. The front output seal can be replaced without removing the transfer case from the vehicle, by removing the front drive shaft. Be sure to drain the transfer case first as some fluid will leak once the seal is removed making a big mess. Some people feel that it can be easier to remove the transfer case from the vehicle and replace the seals on a workbench though.





Does the transfer case need to be removed to change the front input seal?



Yes, it does. There is no way to access the front input seal without removing the transfer case from the vehicle.





How do I remove the old rear output seal?



We have seen good results by simply using a pry bar or mallet and popping the old seal off the output of the transfer case after removing the rear driveshaft. Be careful not to scar the output shaft or damage the transfer case half.





I know I filled my transfer case with exactly 2 quarts of oil, how could it be overfilled now?



A leaking input seal can allow transmission fluid to leak into the transfer case causing the fluid level in the transfer case to increase while the level in the transmission decreases! Replace the input seal to resolve this problem.





Can my original transfer case gasket be reused if it is not ripped?



We recommend replacing the transfer case gasket any time the transfer case is removed from the transmission output adapter. It is cheap insurance against leaks that not only make a mess but could also damage your transmission!





Are the perforation marks on the transfer case gasket normal?



Yes, the perforation marks are part of the gasket production process.





My truck shows it is in 4WD but the front tires are not spinning?



A damaged or worn Mode Slider or Mode Fork will cause improper engagement where the transfer case will not fully lock into gear. Inspect Mode Slider and Mode Fork for damage or rounded teeth on the Mode Slider which could cause it to not lock into gear.





My Mode Fork shows some wear on the pads, is it okay to just install a new Mode Fork, or do I need to replace both the Mode Fork and the Mode Slider?



Whenever there is damage to the Mode Fork it is highly likely that the cause is damage inside the Mode Slider that rides in the Mode Fork so both should be replaced together.





My transfer case chain came in contact with the Mode Fork, do I just need a new Mode Fork?



Inspect for movement between the Mainshaft and the Sleeve Hub, if there is any lateral play present both the Mainshaft and Sleeve Hub should be replaced.





How do I know if I have an older style bushing synchronizer hub or the newer style bearing synchronizer hub?



Some early model NP261XHD and NP263XHD transfer cases used the busing style mainshaft and synchronizer hub, while all later model NP261XHD and NP263XHD transfer cases used the bearing style mainshaft and synchronizer hub. Unfortunately there is no way to verify which style was used in a transfer case without disassembling it and checking to see if the hub gear uses a bushing or bearing. If the mainshaft and hub gear use a bearing then the newer bearing style Synchronizer Hub Assembly will work. If the mainshaft and hub gear use a bushing then the mainshaft (MA #401672A) and synchro hub gear (MA #88962335) will need to be replaced to update them to the newer style bearing units.

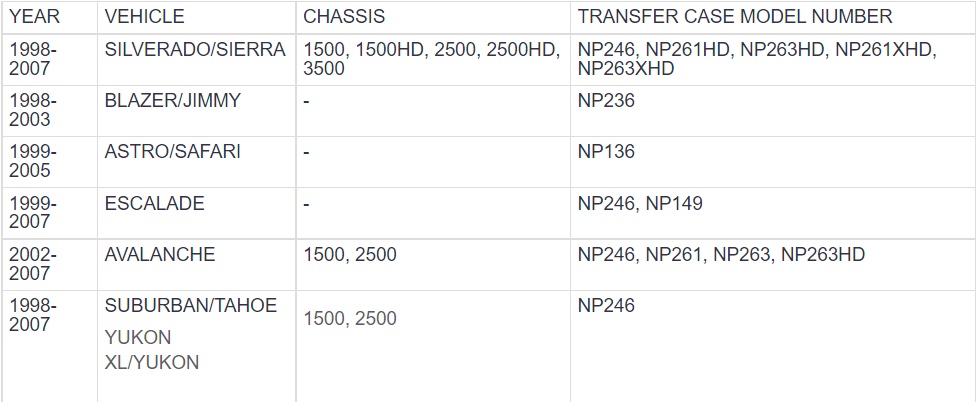

Application


YEAR
VEHICLE
CHASSIS
TRANSFER CASE MODEL NUMBER
1998-2007
SILVERADO/SIERRA
1500, 1500HD, 2500, 2500HD, 3500
NP246, NP261HD, NP263HD, NP261XHD, NP263XHD
1998-2003
BLAZER/JIMMY
-
NP236
1999-2005
ASTRO/SAFARI
-
NP136
1999-2007
ESCALADE
-
NP246, NP149
2002-2007
AVALANCHE
1500, 2500
NP246, NP261, NP263, NP263HD
1998-2007
SUBURBAN/TAHOE
YUKON XL/YUKON

1500, 2500
NP246

2500HD 3500 Silverado Sierra 6.6L V8 Duramax diesel and V8 8.1L gas engines:

LB7, LLY, LBZ, 8.1L


Years

 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, early 2007


NOTE: This upgrade kit is designed to work with OE Magnesium case halves and MAY NOT BE COMPATIBLE with some aftermarket aluminum rear transfer case halves due to the inconsistent manufacturing tolerances seen in them, verify correct fitment prior to installation.
