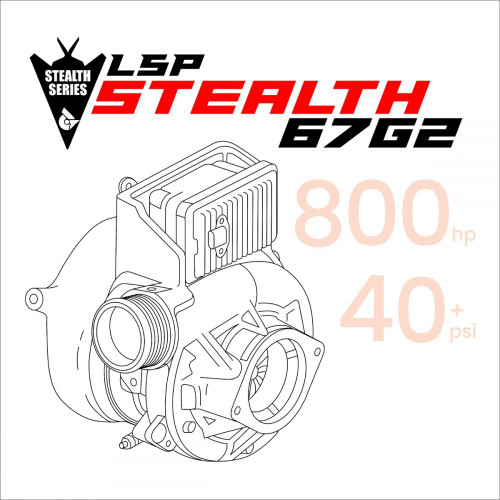

Duramax Tuner L5P / L5D Stealth Mach 2 (67) Turbo W/ Actuator (2017- 2019)

L5P / L5D Stealth 67G2 Turbocharger

Take your Duramax performance to the next level with the Stealth 67G2—the ultimate drop-in turbo upgrade for 2017–2019 6.6L L5P/L5D engines. Designed to deliver stock-like drivability with big power potential, this turbo offers airflow to support up to 800 RWHP while still lighting quickly for towing, daily driving, and street performance.

HFV Technology (High Flow Vane)

At the heart of the 67G2 is our exclusive HFV (High Flow Vane) system, a custom-engineered variable vane cage and nozzle ring assembly. This innovation allows the use of a larger turbine wheel without sacrificing spool time. The result? Faster throttle response, improved EGT control, and more power across the entire operating range.

Key Performance Features

• Airflow Capacity: Supports up to 800HP

• 650 RWHP Capability: Achievable with emissions intact and basic mods

• Competition Proven: Tested beyond 800 RWHP with extensive upgrades

Custom Vane/Nozzle Ring Assembly

• Designed in-house for this application

• Taller, wider vanes paired with a larger turbine for unmatched efficiency

• Maintains factory exhaust brake functionality

Billet Compressor Wheel

• 67mm 11-blade custom design

• Lightweight yet strong for quicker spool and durability

• Delivers 81 lbs/min airflow (vs. 60 lbs/min stock)

Oversized Turbine Wheel

• Low drive pressures at high load

• Superior EGT management

• Distinctive 10-blade exhaust note

Brand-New Construction

• 100% new parts and electronics

• No core charge required

• Optional pre-calibrated actuator available

Ideal For Drivers Who:

• Want custom tuning and increased power

• Daily drive their truck but demand reliability

• Tow heavy loads while keeping EGTs under control

• Value a balance of street manners and high performance

Actuator Guidance

Most L5P/L5D actuators are durable and rarely fail due to their location away from heat sources. Unless your truck shows actuator-related codes or confirmed damage, reusing your stock actuator is recommended.

Boost Leak Testing – Optional Add-On

A Stealth Boost Tester is available to ensure your charge air system is free from leaks, helping maintain power, fuel economy, and engine longevity. Features include:

• Heavy-duty regulator with precise control

• Full charge system testing

• CNC precision-cut adapter for perfect fitment

• Premium seals and liquid gauge for accuracy

• Built from long-lasting, high-quality materials

• Made and assembled in the USA

Important Notes

• This turbo incorporates a custom nozzle ring and/or shroud plate for optimized performance.

• It must be paired with tuning that retains stock minimum/maximum vane position tables. Using non-stock vane values may lead to excessive exhaust pressure or premature wear, which is not covered under warranty.

Warranty

All Stealth Series turbos are backed by a 1-Year, Unlimited Mileage Manufacturer Warranty covering craftsmanship and quality.

Direct Fitment & Replacements

The L5P/L5D Stealth 67G2 is a direct-fit replacement for:

• 2017–2019 Chevy Silverado 2500/3500/4500/5500/6500

• 2017–2019 GMC Sierra 2500/3500/4500/5500/6500

• 2019+ International CV (Medium Duty)

Replaces OEM part numbers: 12709701044, 11547786, 12683985, 12689094
