CP3 Injection Pump Install Gasket Kit, LB7 | 2001-2004

The Merchant Automotive CP3 Fuel Injection Pump Install Gasket Kit includes the seals, gaskets and fuel hoses for removing and reinstalling the CP3 high-pressure fuel pump on 2001-2004 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L LB7 Duramax diesel. Getting to the CP3 means removing the intake Y-bridge, turbo inlet, coolant pipes and fuel hoses. This kit includes the seals for those parts, plus the pump bracket and pump-to-adapter seals. It also includes a new Merchant Automotive CP3 return hose and front fuel feed hose, so the old hoses don't have to go back on.

Features

• Seal and gasket kit for LB7 CP3 removal and installation
• New Merchant Automotive CP3 return hose and front fuel feed hose
• CP3 pump bracket-to-block seal and pump-to-adapter O-ring
• Intake Y-bridge, turbo inlet and coolant pipe seals for the parts removed to reach the pump

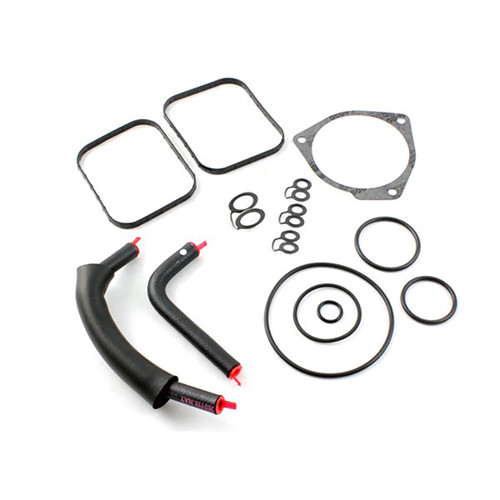

What's Included

• (1) Merchant Automotive CP3 Injection Pump Return Hose (15008), replaces GM 97216067
• (1) Merchant Automotive Front Fuel Feed Hose (15011), replaces GM 97216066
• (1) CP3/CP4 Pump Bracket Seal, Adapter to Block (12638504)
• (1) CP3 Pump to Adapter Small O-ring (97351488)
• (1) Fuel Pressure Relief Valve Banjo Seal (97250485)
• (1) Injector Return Line Small Banjo Seal 3-Pack (10383)
• (2) Intake Y-Bridge Gaskets (97251963)
• (1) Turbo Inlet Gasket (97318441)
• (1) Upper Radiator Pipe Seal (94011604)
• (1) Heater Pipe Seal (94011605)
• (1) Oil Fill Tube Seal (94007612)

When to Use This Kit

Use this kit any time the CP3 is removed, whether you are replacing the pump or reinstalling the original. New fuel hoses help prevent leaks and air getting into the fuel system on the new pump.

Installation Tips

• Owners on the DuramaxDiesels forum note that the CP3 adapter O-rings are not reusable and can be tricky to seat, so take your time fitting the new ones.
• Replace the banjo bolt seals rather than reusing the old ones to help prevent fuel leaks.

Before You Order

• Pump not included: see the New CP3 Fuel Injection Pump, 2001-2004 or the XDP Remanufactured CP3 Fuel Pump, LB7.
• LB7 only: for 2004.5-2005 LLY trucks, use the CP3 Install Gasket Kit, 2004.5-2005.

Related Parts

• New CP3 Fuel Injection Pump, 2001-2004
• XDP Remanufactured CP3 Fuel Pump, LB7

Frequently Asked Questions

Does this kit include the CP3 pump?
No. It includes the seals, gaskets and fuel hoses for the job. The pump is sold separately.

Will it fit my 2004.5-2005 LLY?
No. Use the CP3 Install Gasket Kit, 2004.5-2005.
