NP246 Rear Output Shaft Bearing, B25 | 1999-2007

Merchant Automotive

$45.13
SKU:
404220A
Adding to cart… The item has been added

NP246 Rear Output Shaft Bearing, B25 | 1999-2007

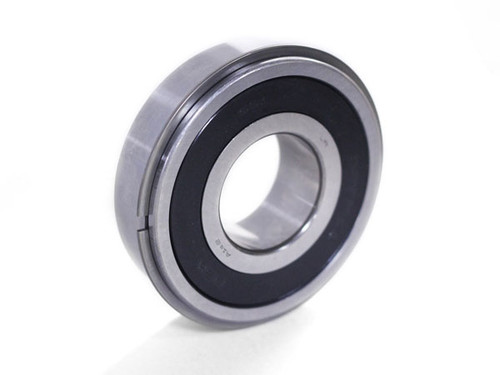

This is the updated rear mainshaft support bearing for the NP246 transfer case used in 1999-2007 GM 1500 trucks and SUVs. It is item B25 in the exploded view. The 404220A bearing measures 80 mm OD x 35 mm ID x 23 mm wide and comes with a snap ring. The output shaft support bearing is a common failure point on the NP246. When it fails, you'll hear a growl from the transfer case, and the mainshaft can move around in the case. Under load the chain can then jump teeth, and the rear housing is often damaged as well. Another sign of failure is a leak from the tailshaft seal.

Key Features

  • Updated rear mainshaft (output shaft) support bearing, 404220A
  • 80 mm OD x 35 mm ID x 23 mm wide, with snap ring
  • Item B25 in the exploded view
  • Fits the NP246 transfer case
  • Sold individually; one required per transfer case

Benefits

Replacing a worn support bearing before the mainshaft starts walking around in the case can save the rear housing and chain. To check it, grab the rear driveshaft and move it up and down. A good bearing allows very little movement. Replace if worn or damaged. Commonly replaced at the same time: Transfer Case Rear Output Seal, 246 261HD 263HD | 1999-2007.

Frequently Asked Questions

How do I know the bearing is bad?
Common signs are a growl from the transfer case, a leaking tailshaft (rear output) seal, and excess up-and-down play at the rear driveshaft. In bad cases the chain can jump teeth under load.

Is there a kit with all the NP246 bearings?
Yes. This bearing is included in the Deluxe Bearing and Seal Kit, NP246 Transfer Case | 1999-2007.

Is this the same bearing used in the NV3500?
Yes. The 404220A bearing is also used as the input or output bearing in NV3500 and NV3550 manual transmissions.

Will this fit the 261HD, 263HD or XHD cases?
No. In GM transfer cases, this bearing is for the NP246 only.

Fitment

Fits the NP246 transfer case in these 1999-2007 GM 4WD vehicles:

  • 1999-2007 Chevrolet Silverado and GMC Sierra 1500
  • 2001-2003 and 2005-2006 Silverado and Sierra 1500HD
  • 1999-2004 Silverado and Sierra 2500 (non-HD)
  • 1999-2007 Chevrolet Tahoe
  • 2000-2007 Chevrolet Suburban 1500 and 2500
  • 2002-2007 Chevrolet Avalanche

Confirm the transfer case tag reads 246 before ordering.

What's Included

  • (1) NP246 rear output shaft support bearing, 404220A
  • (1) Snap ring
