Deluxe Bearing and Seal Kit, NP246 Transfer Case | 1999-2007
The Merchant Automotive Deluxe Bearing and Seal Kit includes the bearings, seals, thrust washers and wear parts needed to overhaul the NP246 electric-shift transfer case used in 1999-2007 GM 1500 trucks, Tahoe, Suburban, Avalanche and Yukon XL. Instead of tracking down a dozen individual parts, you get every bearing and seal for the rebuild in one kit. That includes both the 27 and 32 spline input gear bearings, so it covers either input shaft.
Key Features
- Complete bearing and seal overhaul kit for the NP246
- Front input, front output and rear output seals
- Front output, output shaft, input and clutch drum bearings
- Both 27 spline and 32 spline input gear bearings included
- Range fork pad kit, planetary thrust washers and adapter gasket
- Speed sensor seals, pickup tube seal and O-rings
Benefits
Once an NP246 is apart, every bearing and seal should be replaced. A worn bearing left in place brings back the noise, and a reused seal brings back the leak. Worn range fork pads let the fork contact the shift collar, so replacing them during the overhaul helps prevent grinding and pop-out. Replace if worn or damaged.
Frequently Asked Questions
Does this kit include the chain or the pump?
No. This kit covers bearings, seals, thrust washers, range fork pads and O-rings. The chain, pump and hard parts are not included.
Why are there two input gear bearings?
The NP246 was built with either a 27 spline or a 32 spline input. Both bearings are included so the kit fits either version. Use the one that matches your input gear.
How do I know I have an NP246?
Check the ID tag on the rear half of the transfer case. The NP246 is the electric-shift case used with GM's AutoTrac 4WD system.
Can I buy the seals separately?
Yes. We sell the Front Input Seal, Front Output Seal and Rear Output Seal individually.
Fitment
Fits the NP246 transfer case in these 4WD vehicles:
- 1999-2007 Chevrolet Silverado and GMC Sierra 1500
- 2001-2003 and 2005-2006 Silverado and Sierra 1500HD
- 1999-2004 Silverado and Sierra 2500 (non-HD)
- 2001-2007 Silverado and Sierra 2500HD equipped with the NP246
- 1999-2007 Chevrolet Tahoe and Suburban 1500, 2000-2007 Suburban 2500
- 2002-2007 Chevrolet Avalanche 1500, 2002-2006 Avalanche 2500
- 2000-2007 GMC Yukon XL 1500, 2000 Yukon Denali, 1999-2000 Cadillac Escalade
Confirm the transfer case tag reads 246 before ordering. Not for the 261HD, 263HD, 261XHD or 263XHD cases.

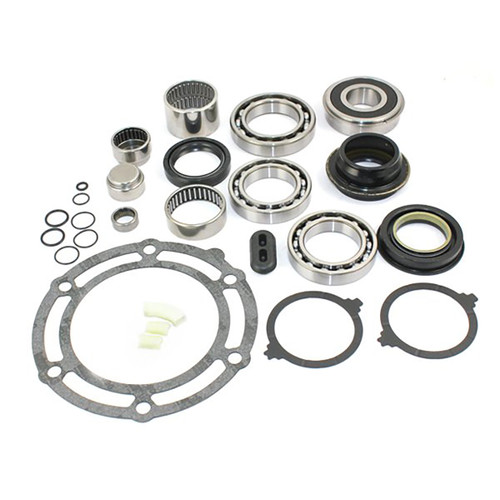

What's Included
- (1) Transfer case to transmission adapter gasket
- (1) Front input seal
- (1) Front output seal
- (1) Rear output seal
- (1) Front output shaft bearing
- (1) Output shaft bearing
- (2) Front output / input shaft bearings
- (1) Input gear bearing, 32 spline
- (1) Input gear bearing, 27 spline
- (1) Clutch drum bearing
- (1) Detent lever selector shaft bearing
- (1) Range fork pad kit
- (2) Planetary thrust washers
- (3) Speed sensor seals
- (1) Pickup tube seal
- (1) Selector shaft sensor / detent plug O-ring
- (2) Clutch lever pivot pin O-rings
- (1) Snap ring hole grommet
For warranty information, see our Warranty Policy.
