Deluxe Bearing and Seal Kit, 263HD Transfer Case | 2001-2007

Deluxe Bearing and Seal Kit, 263HD Transfer Case | 2001-2007

The Merchant Automotive Deluxe Bearing and Seal Kit includes the bearings, seals, thrust washers and wear parts needed to overhaul the 263HD transfer case used in 2001-2007 gas Chevrolet Silverado and GMC Sierra HD trucks. Instead of tracking down a dozen individual parts, you get every bearing and seal for the rebuild in one kit, including the range shift fork pads and both pickup tube seals.

Key Features

• Complete bearing and seal overhaul kit for the 263HD
• Front input, front output and rear output seals
• Input gear (32 spline), front output, input/front output and rear output shaft bearings
• Range shift fork pads (pair) and planetary thrust washers
• Mainshaft O-ring, speed sensor seal and pickup tube seals
• Transfer case to transmission adapter gasket

Benefits

Once a 263HD is apart, every bearing and seal should be replaced. A worn bearing left in place brings back the noise, and a reused seal brings back the leak. Worn range fork pads let the fork contact the shift collar, so replacing them during the overhaul helps prevent grinding and pop-out. Replace if worn or damaged. Commonly replaced at the same time: Merchant Automotive Transfer Case Pump Upgrade Kit | 1998-2007, Transfer Case Snap Ring Kit - 263HD | 2001 - 2007.

Frequently Asked Questions

Will this fit my Duramax?
No. 2001-2007 Duramax trucks use the 261XHD or 263XHD transfer case. Use the Transfer Case Bearing and Seal Kit - 263XHD, Duramax | 2001 - 2007 or the Deluxe Bearing and Seal Kit, 261XHD Transfer Case | 2001 - 2007.

How do I know I have a 263HD?
Check the ID tag on the rear half of the transfer case. The 263 is the electric-shift (push-button) version, and the 261 is the manual-shift (floor lever) version.

Does this kit include the chain or the pump?
No. This kit covers bearings, seals, thrust washers, fork pads and O-rings. The chain, pump and hard parts are not included.

Fitment

Fits the 263HD transfer case in 2001-2007 Chevrolet Silverado and GMC Sierra 2500HD and 3500 4WD with a gas engine (Classic body). Confirm the transfer case tag reads 263HD before ordering. For the 261HD, use the Deluxe Bearing and Seal Kit, 261HD Transfer Case. For the NP246, use the Deluxe Bearing and Seal Kit, 246 Transfer Case | 1999 - 2007.

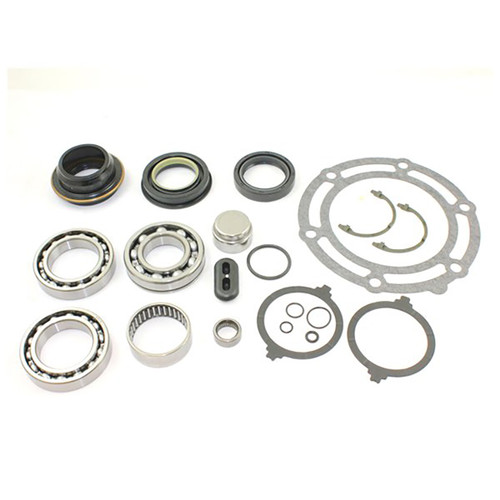

What's Included

• (1) Transfer case to transmission adapter gasket
• (1) Front input seal
• (1) Front output seal
• (1) Rear output seal
• (1) Input gear bearing, 32 spline
• (1) Front output shaft bearing
• (2) Front output / input shaft bearings
• (1) Rear output shaft bearing
• (1) Detent lever selector shaft bearing
• (1) Range shift fork pads, pair
• (2) Planetary thrust washers
• (1) Mainshaft O-ring, 38 spline
• (1) Speed sensor seal
• (1) Selector shaft sensor / detent plug O-ring
• (1) Pickup tube seal, 49 spline pump
• (1) Pickup tube seal, 38 spline
• (1) Snap ring hole grommet

For warranty information or to submit a claim, see our Warranty Form.
