Transfer Case Range Fork, NP261XHD / 261HD | 1998-2007

Merchant Automotive

$59.93
SKU:
352849A
Adding to cart… The item has been added

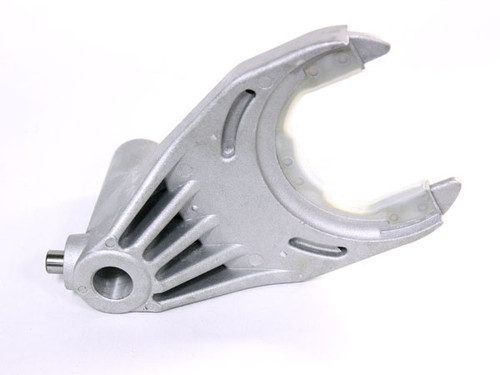

This replacement shift range fork fits the GM NP261 manual floor-shift transfer case: the NP261XHD used behind the Duramax diesel and the NP261HD used in gas HD trucks from 1998 to 2007. The range fork moves the range hub between high and low range when you move the floor shift lever. A worn or bent range fork can cause hard shifting into or out of 4-Low, the transfer case jumping out of range, or grinding during shifts. The fork is listed as A18 on the transfer case exploded-view diagram.

Key Features

  • Shift range fork for manual floor-shift NP261 transfer cases (diagram callout A18)
  • Fits both the NP261XHD (diesel) and NP261HD (gas)
  • Direct replacement for the factory range fork

Benefits

  • Restores smooth, positive shifts between high and low range
  • Helps stop the transfer case from jumping out of range
  • Replaces a worn or bent fork without replacing the whole case

Frequently Asked Questions

Does this fit my electronic-shift (push-button) transfer case?
No. This fork is for the NP261 manual floor-shift case only. The electronic-shift NP263 uses a different range fork. See our Electronic Shift Range Fork, 263XHD/263HD.

How do I know if I have a 261 or 263?
The 261 has a floor shift lever. The 263 is shifted with a dash switch. Check the tag on the transfer case to be sure.

What else should I check while the case is apart?
Inspect the range hub, mode fork, chain and bearings, and replace the seals. 2001–2007 cases are also prone to pump rub, so a rebuild is the ideal time to install our Transfer Case Pump Upgrade Kit.

Fitment

  • 2001–2007 Chevrolet Silverado / GMC Sierra 2500HD / 3500HD 6.6L Duramax (LB7, LLY, LBZ) with NP261XHD manual floor-shift transfer case
  • 1998–2007 GM HD gas trucks with NP261HD manual floor-shift transfer case
  • 2007 fitment is classic-body trucks only

Rebuilding the case? See the 261XHD Deluxe Bearing and Seal Kit, 261HD Deluxe Bearing and Seal Kit, Range Hub with Molded Pads, Mode Fork and XHD Transfer Case Chain, and refill with Merchant Automotive Transfer Case Fluid.

What's Included

  • (1) NP261 transfer case shift range fork (A18)
