Replace both the internal and external spin on filters on your Allison 1000 transmission with one kit. This kit includes the internal filter for the SHALLOW pan and a genuine Allison external spin on filter. It fits 2011-2019 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L Duramax diesel (LML and L5P) and the shallow Allison 1000 pan.
Features
- Shallow pan internal filter (29542833)
- Genuine Allison external spin on filter (29539579)
- Both transmission filters for a complete filter service in one kit

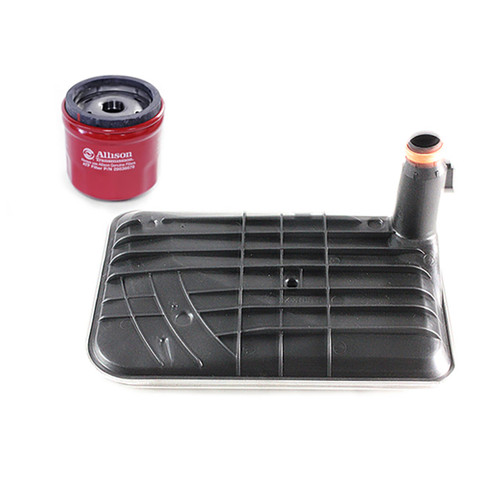

What's Included
- (1) Allison Internal Filter, Shallow Pan, 2011-2019 (29542833)
- (1) Allison 1000 External Spin On Filter (29539579)
Before You Order
- Shallow pans only: if your truck has the DEEP pan, order the Allison Filter Kit for the Deep Pan.
- How to tell the pans apart: a DEEP pan is about 4.5 inches deep from front to rear. A SHALLOW pan is about 4 inches deep at the front and slopes to about 2.5 inches deep at the rear. Click here for photos and more detail.
- 2001-2010 trucks: see the Allison Internal Filter & Spin On Combo, Shallow Pan, 2001-2010.
- 2011-2019 only. 2020 and newer trucks use a different transmission.
- Not included: transmission fluid, the pan gasket and the drain plug are sold separately (see Related Parts).
- Filter color: Allison has temporarily used black paint instead of red on the spin on filter. Both colors are the same part.
Installation Tips
- Save the spin on filter magnet. A magnet sits between the spin on filter and the transmission. It often sticks to the old filter and gets thrown away by mistake. Clean it and reinstall it with the new filter. If yours is missing, see the Allison Spin On Filter Magnet.
- Check the fluid level with the dipstick using the procedure in your owner's manual, and use the fluid specification listed there for your truck.
Installation Resources
Related Parts
- Allison 1000 Transmission Pan Gasket
- Allison Transmission Drain Plug with Seal
- Allison 1000 Spin On Filter Magnet
- Band Style Wrench for Allison Spin On Filter
- ACDelco Dexron VI ATF, Quart
- ACDelco Dexron VI ATF, Gallon
- Castrol TranSynd 668 Full Synthetic ATF, 1 Gallon
- All-Trans Supreme ATF, Gallon
- Allison 1000 Deep Pan Kit with Deep Filter Lock
- Allison 1000 Deep Pan Kit, 3 Gal TranSynd and Filter Lock
Frequently Asked Questions
How can I tell if my Allison 1000 has a DEEP pan or a SHALLOW pan?
Look at the profile of your transmission pan. A DEEP pan is about 4.5 inches deep from the front to the rear of the pan. A SHALLOW pan is about 4 inches deep at the front and slopes to about 2.5 inches deep at the rear. Click here to see photos and a further explanation.
How often should I change the filters?
Merchant Automotive recommends replacing the internal filter every 75,000 to 100,000 miles and the external spin on filter every 12,000 miles. Check your owner's manual for GM's interval for your truck.
Can I reuse the spin on filter magnet?
Yes. Clean it and reinstall it between the new filter and the transmission.
