Adding fluid capacity to your Allison transmission helps keep it cool, and the Merchant Automotive Allison 1000 Deep Pan Kit makes it easy. It fits 2001-2019 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L Duramax diesel and the Allison 1000 transmission, as well as 2001-2007 8.1L gas trucks equipped with the Allison 1000. The kit adds approximately three quarts of fluid to the system with a larger genuine Allison deep transmission pan, a deep sump internal filter, a genuine Allison spin-on filter, a Merchant Automotive deep filter lock and 3 gallons of TranSynd 668 full synthetic transmission fluid.
Features
- Adds approximately three quarts of fluid capacity
- Helps keep the transmission cooler
- All-in-one kit: deep pan, both filters, filter lock and fluid
- Includes the Merchant Automotive deep filter lock
- No modification needed

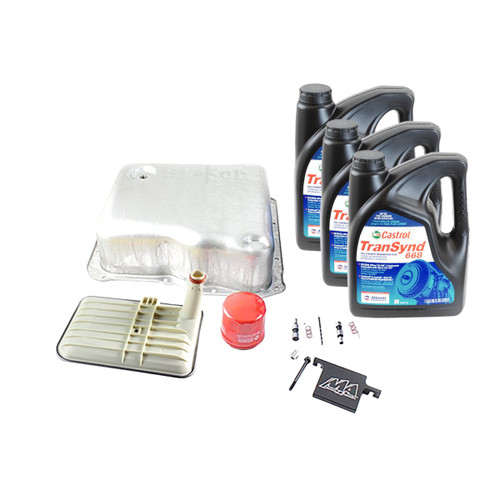

What's Included
- (1) Genuine Allison stamped steel deep sump transmission pan
- (1) Deep internal filter
- (1) Allison 1000 external spin-on filter
- (1) Merchant Automotive Allison 1000 deep filter lock
- (3) Castrol TranSynd 668 full synthetic transmission fluid, 1 gallon
Before You Order
Note: This kit does not include a transmission pan gasket. Order a new Allison 1000 Transmission Pan Gasket to install with the deep pan.
Installation Tips
- Install the deep internal filter with the included filter lock to hold it in place.
- Install the pan with a new pan gasket.
- Replace the external spin-on filter at the same time.
- Refill with the included TranSynd 668, then check the fluid level with the engine running and the transmission at operating temperature.
Related Parts
- Allison 1000 Transmission Pan Gasket
- Allison 1000 Deep Pan Kit with Deep Filter Lock (no fluid)
- Allison Filter Kit, Deep Pan
- Allison Transmission Drain Plug with Seal
Frequently Asked Questions
How much fluid capacity does the deep pan add?
Approximately three quarts.
Is a pan gasket included?
No. Order a new Allison 1000 Transmission Pan Gasket separately.
Do I need to modify anything to install it?
No. The deep pan kit installs with no modification needed.
Does it fit 8.1L gas trucks?
Yes. It fits 2001-2007 8.1L gas trucks equipped with the Allison 1000 transmission.
Can I buy the kit without fluid?
Yes. See the Allison 1000 Deep Pan Kit with Deep Filter Lock.
For warranty information or to submit a claim, see our Warranty Form.
