Planetary Lock Plate Snap Ring | 1998-2013

(0) No Reviews yet
SKU: 15547397
$9.49

Earn 949 Boost Points

Description

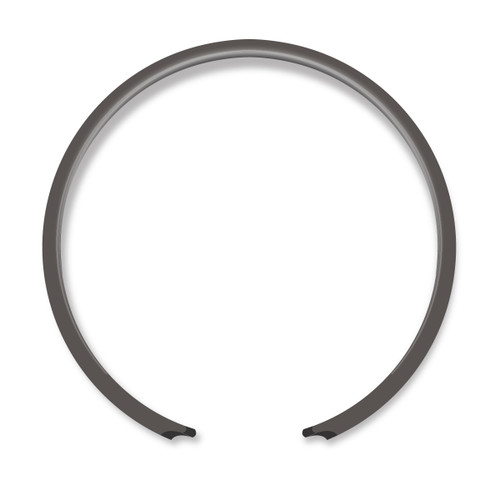

This snap ring is used to retain the planetary gear set inside the transfer case.


NOTE: While this part fits many 1998-2013 transfer cases, it does not fit 2007-2013 MP1226 and MP1626 transfer cases of the earlier design that use a 5-gear planetary. Use part number 19132997 if you have a 5-gear planetary in your 2007-2013 LMM/LML transfer case.



Click here to view the Merchant Automotive Transfer Case Pump Upgrade kit.



Click here to view transfer case pump upgrade installation instructions.



Click here to view the Truck U segment on the Merchant Automotive Transfer Case Pump Upgrade.



FAQ:

I hear a grinding noise at low speed after reassembling my transfer case. What could that be?

A low speed grinding noise is most commonly caused by the rear output bearing snap ring not being fully seated causing the bearing to move out of proper alignment. Verify that the snap ring is fully engaged and properly seated in the rear housing and the locating groove in the bearing.

What would cause a speed sensor correlation code after installing the pump upgrade?

A speed sensor correlation code is often accompanied by a low speed grinding noise and is frequently caused by the rear output bearing snap ring not being fully seated causing the bearing to move out of proper alignment. Verify that the snap ring it fully engaged and properly seated in the rear housing and the locating groove in the bearing.

Application


YEAR
VEHICLE
CHASSIS
TRANSFER CASE MODEL NUMBER
1998-2013*
SILVERADO/SIERRA
1500, 1500HD, 2500, 2500HD, 3500
NP246, NP261HD, NP263HD, NP261XHD, NP263XHD, MP1226, MP1626
1999-2007
ESCALADE
-
NP246
2002-2007
AVALANCHE
1500, 2500
NP246, NP263HD
1998-2007
SUBURBAN/YUKON XL
TAHOE/YUKON

1500, 2500
NP246

* NOTE: The 2007.5-2013 LMM/LML transfer cases used two different planetary sets this part only fits the 6-gear planetary set versions. Use part number 19132997 for an LMM/LML truck with a 5-gear planetary in the MP1226 or MP1626 transfer case.


2500HD 3500 Silverado Sierra 6.6L V8 Duramax diesel engines:

LB7, LLY, LBZ, LMM, LML


Years

 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
