Merchant Automotive Billet Coolant Block Off Plate, Duramax | 2001 - 2026
Merchant Automotive
$59.72
- SKU:
- 10089
Add to Cart
The item has been added
Add to Cart
The item has been added
Merchant Automotive Fuel Injector, Duramax | 2001 - 2004
$334.64 - $3,599.64
Add to Cart
The item has been added

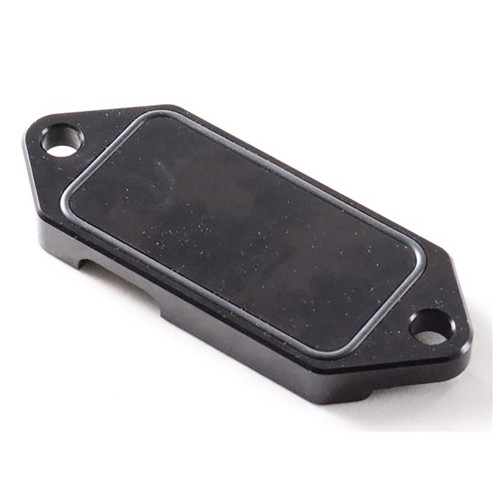

On the rear of the 6.6L Duramax diesel engine there is a coolant block off plate (GM 97941204). The factory plate is cast aluminum and seals with a gasket. Over time, warpage or gasket failure can let this plate leak coolant. The Merchant Automotive Billet Coolant Block Off Plate replaces the factory cast plate with a billet 6061 aluminum plate and a built in O-ring in place of the factory gasket. It fits 2001-2026 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L Duramax diesel (LB7, LLY, LBZ, LMM, LML and L5P).
Features
- Billet 6061 aluminum construction
- Black anodized finish
- Built in O-ring, no gasket needed
- Reuses your factory hardware
- Machined in house by Merchant Automotive in the USA
What's Included
- (1) Merchant Automotive billet coolant block off plate
- (1) O-ring, installed in the plate
When to Replace
Replace the factory plate if you find coolant leaking from the block off plate at the rear of the engine, or if the factory plate is corroded. It is also a good upgrade when other work at the rear of the engine gives you access to the plate.
Before You Order
- Hardware is not included. The plate is designed to reuse the factory bolts.
- Replaces GM part number 97941204.
Installation Tips
- Torque the bolts to 18 ft-lbs.
- Clean the mating surface on the engine of old gasket material and corrosion before installing the new plate.
- Do not use a gasket with this plate. The built in O-ring seals against the mating surface.
- Check the coolant level after installation.

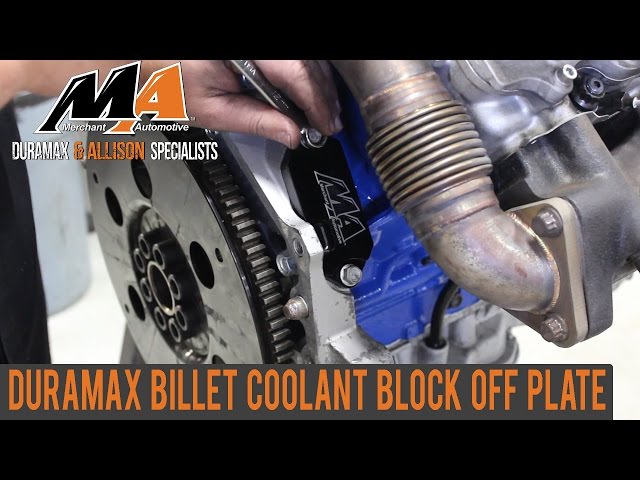

Installation Resources
Related Parts
- Coolant Block Drain Gasket, Duramax 2001-2026
- Rear Cover Coolant Seals, Pair, Duramax 2001-2010
- Rear Cover Coolant Seal, LML Duramax 2011-2016
- Rear Cover Coolant Seal Kit, LML 2011-2016
- Duramax LML Rear Engine Cover Coolant Return Plug
- Merchant Automotive Custom Duramax Motor Mount Plates
Frequently Asked Questions
Do I need a gasket?
No. The plate has a built in O-ring that replaces the factory gasket.
Do I need new bolts?
No. The plate is designed to reuse your factory hardware.
What is the torque spec?
The recommended torque for the bolts is 18 ft-lbs.
