Lower Valve Cover Gasket, LB7 Duramax | 2001-2004

Lower Valve Cover Gasket, LB7 Duramax | 2001-2004

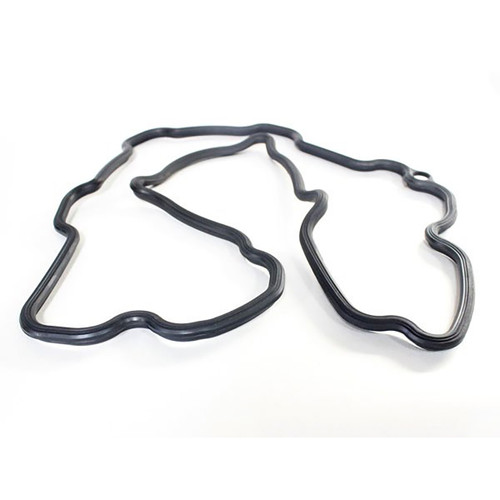

This lower valve cover gasket is for the 6.6L Duramax LB7 and replaces GM 97188896. It seals the lower valve cover to the cylinder head. On the LB7 the lower cover comes off for injector work, so this gasket gets disturbed every time the injectors are replaced. An old, hardened gasket is a common source of oil seepage down the side of the engine.

Key Features

• Replaces GM 97188896
• Seals the lower valve cover to the cylinder head
• Sold individually; one per side, 2 required per engine
• LB7 only

Benefits

Since the lower valve covers come off for LB7 injector replacement, a new gasket on each side lets the covers go back on dry instead of chasing an oil leak after the job. Replace if worn or damaged. Commonly replaced at the same time: Lower Valve Cover Grommet, Duramax | 2001 - 2004, Valve Cover Fuel Line Grommet, Duramax | 2001 - 2004.

Frequently Asked Questions

How many do I need?
The LB7 has a lower valve cover on each side, so a complete job takes 2 gaskets. This listing is for one.

Should I replace the bolts too?
If the bolts are corroded or the grommets are hard, our Lower Valve Cover Bolt Kit, Duramax | 2001 - 2004 replaces them.

Will this fit my LLY or later Duramax?
No. The 2004.5 and newer engines use a different lower valve cover gasket. See the Fitment section below.

Fitment

Fits 2001-2004 Chevrolet Silverado and GMC Sierra 2500HD and 3500 with the 6.6L Duramax LB7. 2 required per engine. For 2004.5-2016 LLY, LBZ, LMM and LML trucks, use the Lower Valve Cover Gasket, Duramax | 2004.5 - 2016.

What's Included

• (1) Lower valve cover gasket
