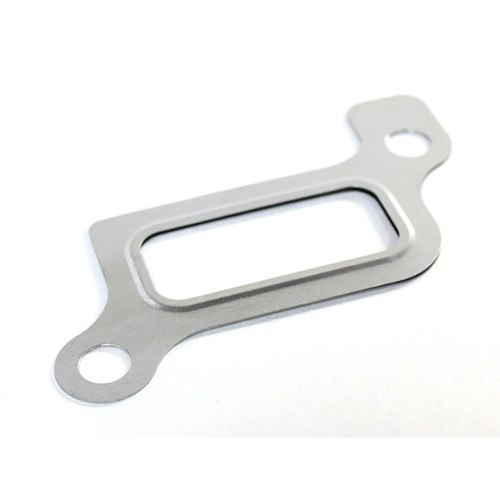

EGR Tube to EGR Valve Gasket, Duramax LLY | 2004.5 - 2005

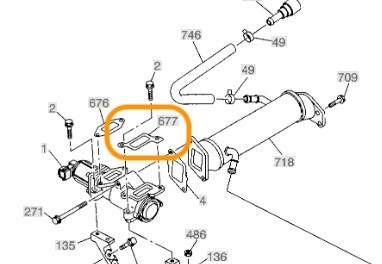

This EGR tube to EGR valve gasket replaces GM part number 97318478 on 2004.5-2005 Chevrolet Silverado and GMC Sierra 2500HD and 3500 trucks, and 2004.5-2005 Chevrolet Kodiak and GMC TopKick C4500 and C5500, with the 6.6L LLY Duramax. It seals the joint where the EGR tube connects to the EGR valve, keeping hot exhaust gas contained as it is routed back into the intake. A burned or blown gasket leaks exhaust and soot under the hood and can cause a ticking noise and EGR codes. Always use a new gasket any time the EGR valve or tube is removed.

Key Features

• Replaces GM part number 97318478
• Seals the EGR tube to the EGR valve
• Steel, 2-bolt design
• Approximately 2.91 in x 1.58 in (74 x 40 mm), 0.02 in (0.5 mm) thick
• Built for high exhaust temperatures
• Individually bagged and labeled by Merchant Automotive

Benefits

A fresh gasket stops exhaust and soot leaks at the EGR valve and keeps EGR flow working as designed. When the EGR system is apart, also replace the EGR Cooler to Up Pipe Gasket and the Intake Tube Gasket. For a hardened coolant hose at the cooler, see the EGR Cooler to Heater Core Hose.

Fitment

Fits 2004.5-2005 Chevrolet Silverado and GMC Sierra 2500HD and 3500 with the 6.6L LLY Duramax diesel, and 2004.5-2005 Chevrolet Kodiak and GMC TopKick C4500 and C5500 with the 6.6L LLY Duramax.

What's Included

• (1) EGR tube to EGR valve gasket, replaces GM 97318478
