Deluxe Seal Kit, NP246 Transfer Case | 1999-2007

Deluxe Seal Kit, NP246 Transfer Case | 1999-2007

The Merchant Automotive Deluxe Seal Kit includes every seal needed to overhaul the NP246 transfer case used in 1999-2007 GM 1500 trucks and SUVs. It covers the front input, front output and rear output seals, the speed sensor seals, the pickup tube seal, the O-rings and the transmission adapter gasket. Instead of ordering each seal separately, you get everything in one kit.

Key Features

• Complete seal kit for the NP246 transfer case
• Front input (A9), front output (A7) and rear output (A13) seals
• Speed sensor seals (A23) and 38-spline pickup tube seal (B30)
• Clutch lever pivot pin and detent plug O-rings
• Transfer case to transmission adapter gasket and snap ring hole grommet

Benefits

A leaking seal lets transfer case fluid drain out, and the NP246 depends on fluid level to keep the pump and chain lubricated. Once the case is apart, replacing every seal at once means no single old seal is left to leak and send the truck back in. Replace if worn or damaged. Commonly used with: Merchant Automotive Transfer Case Rear Output Seal Driver | 2001 - 2019.

Frequently Asked Questions

Does this include bearings?
No. This kit is seals only. For seals and bearings together, see the Deluxe Bearing and Seal Kit, NP246 Transfer Case | 1999-2007.

Will this fit my Duramax?
No. Duramax trucks use the 261XHD or 263XHD transfer case. See our 261XHD or 263XHD seal kits.

How do I know I have an NP246?
Check the ID tag on the rear half of the transfer case. The NP246 is the electric-shift case used with GM's AutoTrac 4WD system.

Fitment

Fits the NP246 transfer case in these 4WD vehicles:

• 1999-2007 Chevrolet Silverado and GMC Sierra 1500
• 1999-2004 Silverado and Sierra 2500 (non-HD)
• 1999-2007 Chevrolet Tahoe and Suburban 1500, 2000-2007 Suburban 2500
• 2002-2007 Chevrolet Avalanche
• 2000-2007 GMC Yukon XL 1500, 2000 Yukon Denali, 1999-2000 Cadillac Escalade

Confirm the transfer case tag reads 246 before ordering.

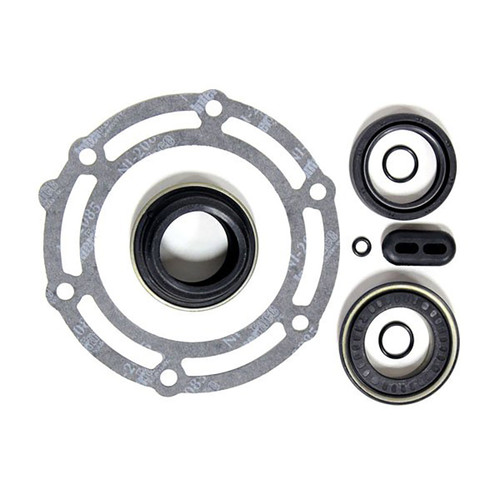

What's Included

• (1) Front input seal
• (1) Front output seal
• (1) Rear output seal
• (3) Speed sensor seals
• (1) Pickup tube seal, 38 spline
• (2) Clutch lever pivot pin O-rings
• (1) Selector shaft sensor / detent plug O-ring
• (1) Transfer case to transmission adapter gasket
• (1) Snap ring hole grommet
