Transfer Case Rear Output Seal Driver | 2001-2019

(0) No Reviews yet
SKU: 10695
$39.99

Earn 3999 Boost Points

Description

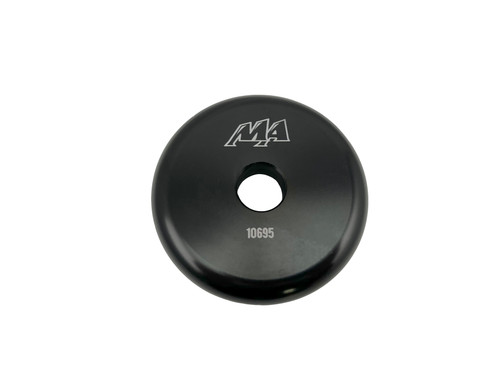

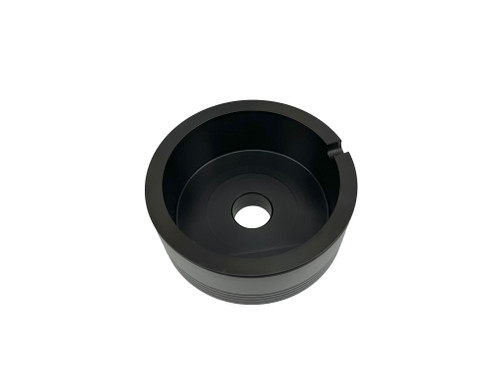

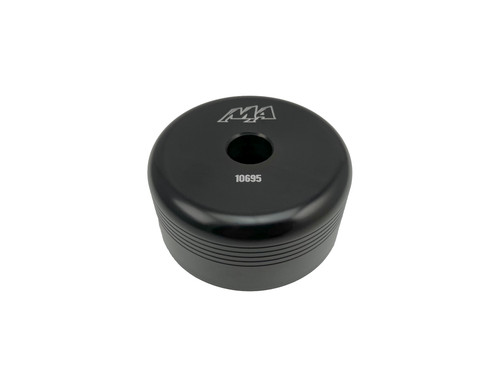

To make it easier to install a new rear output shaft seal in a NP246, NP261HD, NP263HD, NP261XHD, NP263XHD, MP1226 and MP1626 transfer case the team at Merchant Automotive developed this CNC-machined billet aluminum seal driver. The driver features a durable anodized black finish with a laser etched logo and part number to make them easy to identify when sitting in your tool box.



Click here to view the Merchant Automotive Transfer Case Seal Driver kit for 1998-2007 GM transfer cases.


Click here to view the Merchant Automotive Transfer Case Front Output Seal Driver for 2001-early 2007 trucks.


Click here to view the Merchant Automotive Transfer Case Front Output Seal Driver for 2007.5-2019 trucks.


Click here to view the Merchant Automotive Transfer Case Front Input Seal Driver.



FAQ:

How do I remove the old rear output seal?

We have seen good results by simply using a pry bar or mallet and popping the old seal off the output of the transfer case after removing the rear driveshaft. Be careful not to scar the output shaft or damage the transfer case half.


What kind of hammer should I use with the seal driver?

For best results use a rubber or plastic hammer such as a dead-blow hammer. Do not use a metal hammer as the tool could be damaged.


How do I set the seal depth while using the seal driver?

The Merchant Automotive seal drivers are precision machined with positive stops to properly index and set the depth on your seals when properly used.

Application


YEAR
VEHICLE
CHASSIS
TRANSFER CASE MODEL NUMBER
2001-2019
SILVERADO/SIERRA
2500, 2500HD, 3500
NP261XHD, NP263XHD, MP1226, MP1626


2500HD 3500 Silverado Sierra 6.6L V8 Duramax diesel engines:

LB7, LLY, LBZ, LMM, LML, L5P


Years

2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
