Transfer Case Input Seal Driver | 2001-2019
Description

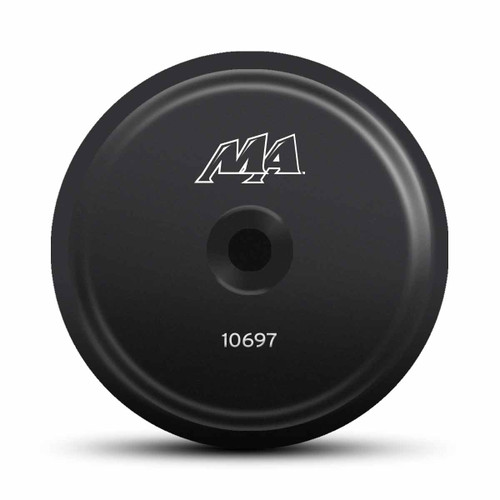

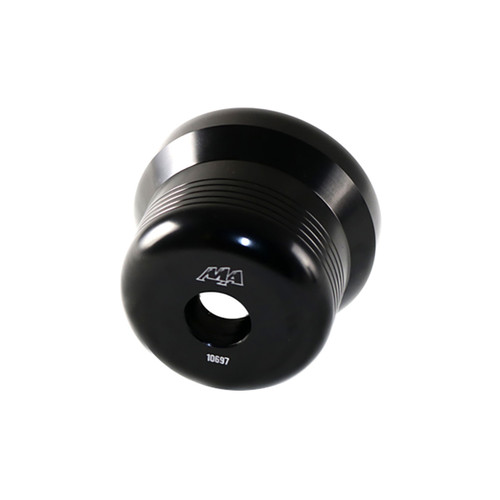

To make it easier to install a new input shaft seal in a NP246, NP261HD, NP263HD, NP261XHD, NP263XHD, MP1226 and MP1626 transfer case the team at Merchant Automotive developed this CNC-machined billet aluminum seal driver. The driver features a durable anodized black finish with a laser etched logo and part number to make them easy to identify when sitting in your tool box.
Click here to view the Merchant Automotive Transfer Case Seal Driver kit for 1998-2007 GM transfer cases.
Click here to view the Merchant Automotive Transfer Case Front Output Seal Driver for 2001-early 2007 trucks.
Click here to view the Merchant Automotive Transfer Case Front Output Seal Driver for 2007.5-2019 trucks.
Click here to view the Merchant Automotive Transfer Case Rear Output Seal Driver.
FAQ:
Does the transfer case need to be removed to change the front input seal?
Yes, it does. There is no way to access the front input seal without removing the transfer case from the vehicle.

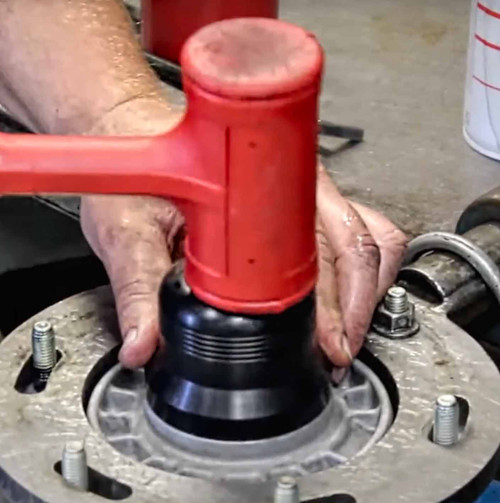

What kind of hammer should I use with the seal driver?
For best results use a rubber or plastic hammer such as a dead-blow hammer. Do not use a metal hammer as the tool could be damaged.
How do I set the seal depth while using the seal driver?
The Merchant Automotive seal drivers are precision machined with positive stops to properly index and set the depth on your seals when properly used.
Application
YEAR | VEHICLE | CHASSIS | TRANSFER CASE MODEL NUMBER |
1998-2019 | SILVERADO/SIERRA | 1500, 1500HD, 2500, 2500HD, 3500 | NP246, NP261HD, NP263HD, NP261XHD, NP263XHD, MP1226, MP1626 |
1999-2007 | ESCALADE | - | NP246 |
2002-2007 | AVALANCHE | 1500, 2500 | NP246, NP263HD |
1998-2007 | SUBURBAN/YUKON XL TAHOE/YUKON | 1500, 2500 | NP246 |
2500HD 3500 Silverado Sierra 6.6L V8 Duramax diesel engines:
LB7, LLY, LBZ, LMM, LML, L5P
Years
1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
