Transfer Case Rear Output Seal Driver, 246 261HD 263HD

Transfer Case Rear Output Seal Driver, 246 261HD 263HD

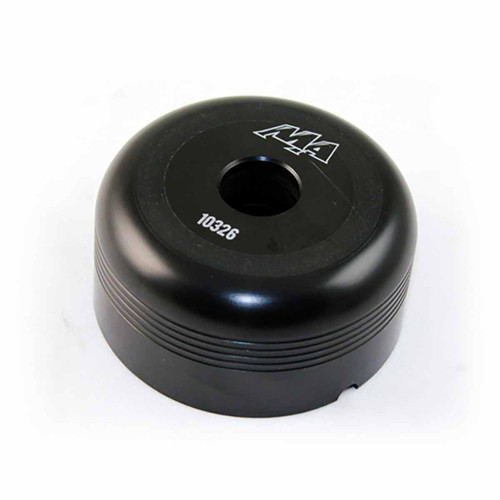

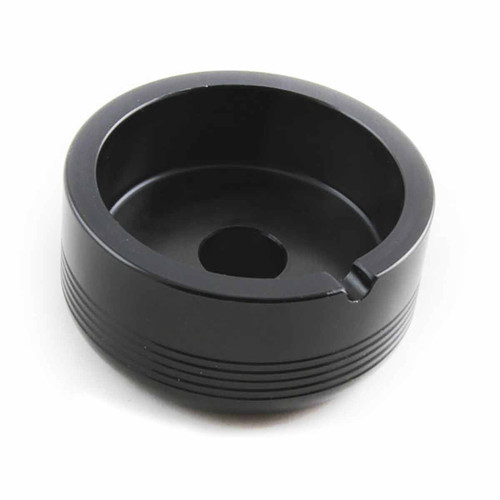

The Merchant Automotive rear output seal driver installs the rear output shaft seal in the NP246, NP261HD and NP263HD transfer cases used in 1999-2007 GM gas trucks and SUVs. It is sized to the seal so it presses in square and to the correct depth without denting the seal case or rolling the lip. That is hard to do with a socket or a hammer and drift. This driver is for HD cases only. It does not fit the 261XHD or 263XHD used behind the Duramax.

Key Features

• Sized for the NP246, 261HD and 263HD rear output seal
• Laser-cut Merchant Automotive driver
• Fits the Merchant Automotive Seal Driver Handle, Steel
• Reusable shop tool

Benefits

A rear output seal that goes in crooked or too deep will leak again, and the rear driveshaft has to come back out to fix it. The driver spreads the force evenly across the seal so it seats flat on the first try. Commonly used with: Transfer Case Rear Output Seal, 246 261HD 263HD | 1999-2007, Rear Output Shaft Bushing, 246 261HD 263HD | 1999-2007.

Frequently Asked Questions

Does this include a handle?
No. The driver fits our Steel Seal Driver Handle, which works with all of our seal drivers and installers. An O-ring on the handle holds the driver in place.

Will this fit my Duramax?
No. 2001-2007 Duramax trucks use the 261XHD or 263XHD transfer case, which takes a different rear seal. Use the Transfer Case Rear Output Seal Driver | 2001 - 2019 instead. That driver fits the HD, XHD and 2007.5-2019 MP1226/MP1626 cases.

How do I know which transfer case I have?
Check the ID tag on the rear half of the case. It will read 246, 261HD, 263HD, 261XHD or 263XHD.

Is there a kit with all the transfer case seal drivers?
Yes. Our Merchant Automotive Transfer Case Seal Driver Kit | 2001 - 2007 includes this driver, the XHD rear output driver, the front output and input drivers, and the handle.

Fitment

Fits the NP246, NP261HD and NP263HD transfer cases in 1999-2007 GM gas trucks and SUVs, including Silverado and Sierra 1500, 2500 and gas 2500HD/3500 4WD models, Tahoe, Suburban, Avalanche, Yukon XL and Escalade. Confirm your transfer case tag before ordering. For the 261XHD and 263XHD behind the Duramax, or one driver that covers HD, XHD and MP cases, use the Transfer Case Rear Output Seal Driver | 2001 - 2019.

What's Included

• (1) Transfer case rear output seal driver
• Handle and seal not included

For warranty information or to submit a claim, see our Warranty Form.
