Merchant Automotive Merchant Automotive Transfer Case Rear Output Seal Driver | 2001 - 2019

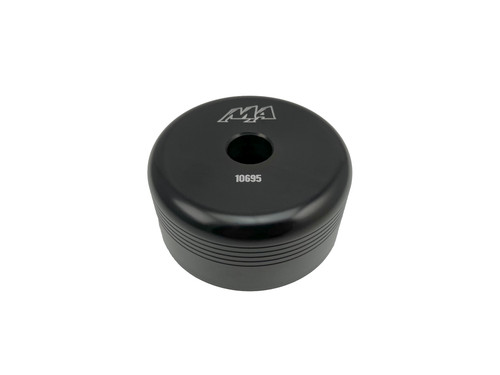

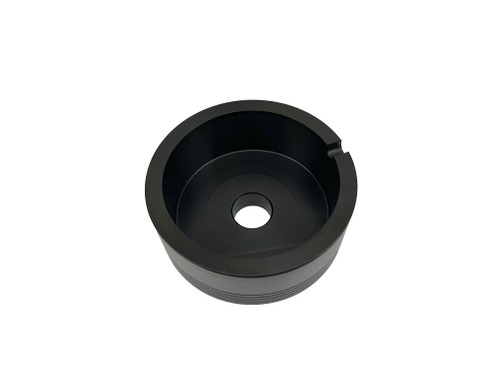

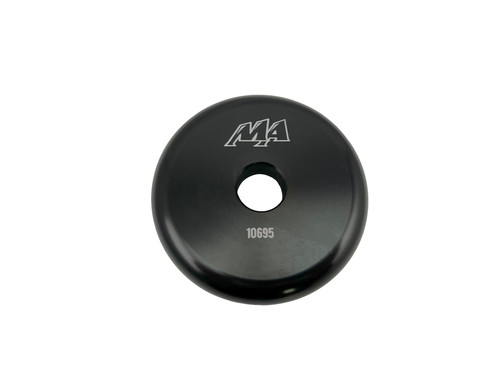

To make it easier to install a new rear output shaft seal in a NP246, NP261HD, NP263HD, NP261XHD, NP263XHD, MP1226 and MP1626 transfer case the team at Merchant Automotive developed this CNC-machined billet aluminum seal driver. The driver features a durable anodized black finish with a laser etched logo and part number to make them easy to identify when sitting in your tool box.

FAQ:

How do I remove the old rear output seal?

We have seen good results by simply using a pry bar or mallet and popping the old seal off the output of the transfer case after removing the rear driveshaft. Be careful not to scar the output shaft or damage the transfer case half.

What kind of hammer should I use with the seal driver?

For best results use a rubber or plastic hammer such as a dead-blow hammer. Do not use a metal hammer as the tool could be damaged.

How do I set the seal depth while using the seal driver?

The Merchant Automotive seal drivers are precision machined with positive stops to properly index and set the depth on your seals when properly used.
