NSBU Connector Repair Kit, Duramax & Gas | 2001-2004

Merchant Automotive

$89.92
SKU:
10496
Adding to cart… The item has been added

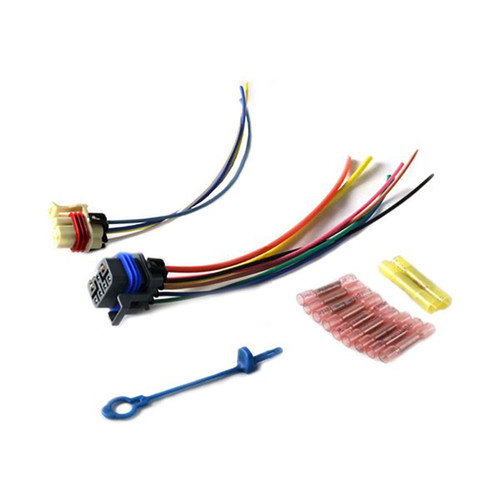

The Merchant Automotive NSBU Connector Repair Kit replaces the corroded or damaged wiring connectors at the Neutral Safety Back Up (NSBU) switch on 2001-2004 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the LB7 6.6L Duramax diesel and the Allison transmission. It also fits many 2001-2004 GM 2500 and 3500 gas trucks and SUVs that use the same NSBU switch (GM 19540535).

The NSBU switch is subject to water contamination, and the connectors can corrode along with it, causing a no start condition, an incorrect gear indicator or pressure switch manifold codes. This kit comes with OE style connectors, sealed terminals and color coded wire for an easy install.

Features

  • OE style MP 150 and MP 150/280 series connectors
  • Sealed terminals and cable seals to keep water out
  • Sealed butt splice connectors for a weather resistant repair
  • Color coded 18 gauge and 12 gauge GXL wire for an easy install
  • Terminal and connector position assurance locks

What's Included

  • (1) Cream MP 150 series connector assembly
  • (9) MP 150 sealed terminals and (9) dark red cable seals
  • (1) Gray 7 position MP 150/280 series connector assembly
  • (2) MP 280 female terminals and (2) blue cable seals
  • (2) Terminal position assurance (TPA) locks and (1) connector position assurance (CPA) lock
  • (9) 22-18 gauge sealed butt splice connectors
  • (2) 12-10 gauge heat shrink butt connectors
  • Color coded 18 gauge GXL wire: black, blue (2), light blue, green, pink, tan, white and yellow
  • Color coded 12 gauge GXL wire: orange and yellow

When to Replace

  • Corroded, wet or damaged connectors or wires at the NSBU switch
  • No start condition or a gear indicator that doesn't follow the shifter
  • Pressure switch manifold (PSM) codes or intermittent NSBU switch codes
  • Any time you replace the NSBU switch and the connectors are in poor condition

Before You Order

Installation Steps

The kit instructions are a picture diagram, so here is a general overview. Always follow the factory service procedure for your truck.

  1. Disconnect the negative battery cables.
  2. Unplug the connectors from the NSBU switch.
  3. Using the diagram, cut and splice in the new connectors one wire at a time, matching each wire by color and position so the circuits stay in the correct order.
  4. Use the sealed butt splices and heat them fully to keep water out of the connections.
  5. Install the TPA and CPA locks, then plug the connectors into the NSBU switch.
  6. Reconnect the batteries and clear any stored codes.
  7. Confirm the truck only starts in park and neutral, the backup lights work in reverse and the gear indicator matches the shifter in every position.

Installation Resources

  • A wiring diagram is included in the product images on this page.

Related Parts

Frequently Asked Questions

Is the NSBU switch included?

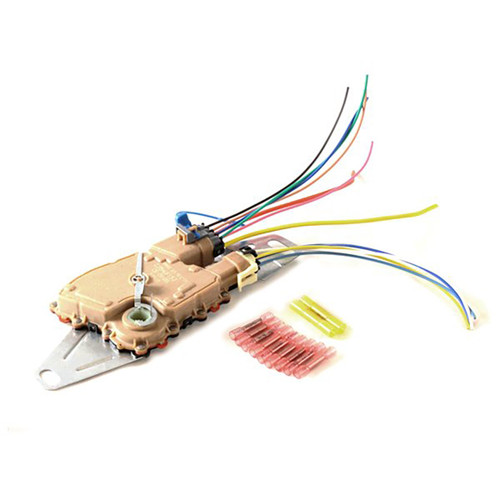

No. This kit includes the connectors, terminals, seals, splices and wire only. The switch is sold separately or together with this kit in the Allison NSBU Switch and Connector Repair Kit.

Why replace the connectors?
The NSBU switch is subject to water contamination, and the connectors can corrode along with it. Corroded connectors can cause faulty readings even with a new switch.

Will this fit my 2004.5 or newer truck?
No. This kit is for 2001-2004 trucks that use the GM 19540535 NSBU switch.
