GM Engine Oil Pump, Duramax | 2011-2016

GM Engine Oil Pump, Duramax | 2011-2016

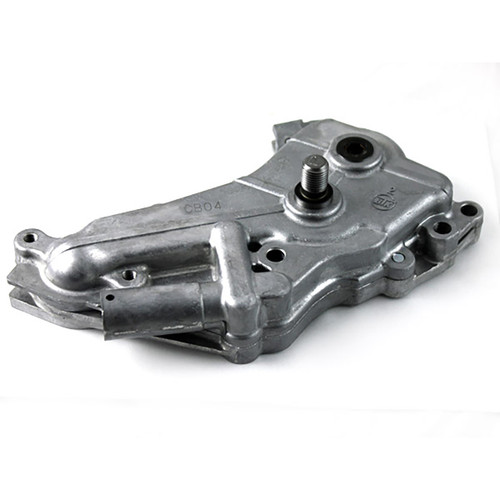

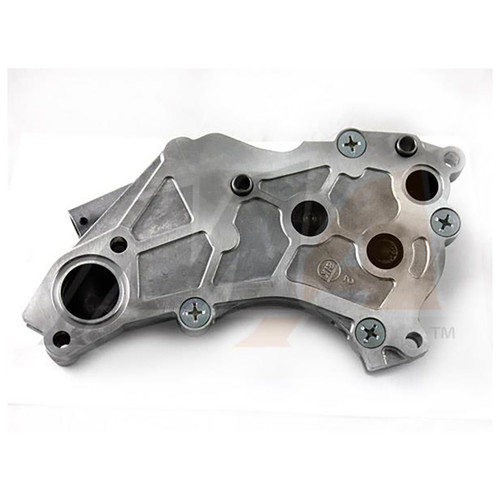

This is the genuine GM engine oil pump (GM 12644591) for the 2011-2016 LML 6.6L Duramax and the LGH Duramax in Express and Savana vans. It's a crankshaft-driven gear pump with an aluminum housing, mounted at the front of the engine, and it supplies oil pressure to the entire engine. It replaces the earlier GM number 12632219.

Key Features

• GM part number 12644591
• Replaces GM 12632219
• Gear-type pump, crankshaft driven
• Aluminum housing
• Size: 8.9 in (226 mm) high x 5.63 in (143 mm) wide
• 6 mounting holes, 0.35 in (9 mm) diameter
• Sold individually; gasket and seals not included

Benefits

Oil pressure starts at this pump, so a worn pump shows up as low pressure readings, especially hot at idle. Because the pump sits behind the front cover area, it's usually replaced during front-end engine work or a rebuild rather than as a stand-alone repair. Replace if worn or damaged. The pump ships without seals, so plan on the Oil Pump to Block Seal, Duramax | 2001 - 2016.

Fitment

Fits 2011-2016 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD with the LML 6.6L Duramax. Also fits late 2010-2016 Chevrolet Express and GMC Savana 2500, 3500 and 4500 vans with the LGH Duramax. For 2001-2010 trucks, see the Melling Oil Pump Duramax | 2001 - 2010.

What's Included

• (1) Engine oil pump, GM 12644591
• Gasket and seals not included
