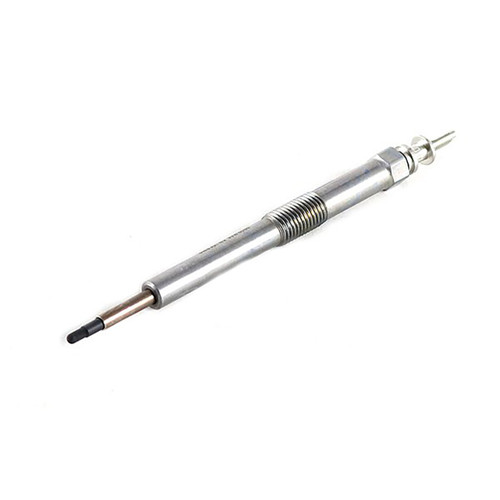

The ACDelco 68G is the OEM replacement ceramic glow plug for 2017-2023 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L Duramax L5P. It replaces GM 12725202. Support reliable cold starts with a genuine ACDelco replacement for a worn or failed original glow plug.
Features
- Genuine ACDelco OEM replacement glow plug
- Replaces GM 12725202
- Ceramic heating element, 130 watt, for 12-volt systems
- 10mm hex, tapered seat, male pin terminal
- Sold individually; the engine uses 8
What's Included
- (1) ACDelco 68G glow plug in manufacturer packaging
When to Replace
Worn or failed glow plugs can cause hard starts or rough running right after a cold start, and glow plug faults for individual cylinders set codes P0671 through P0678 (cylinders 1 through 8). On the DuramaxDiesels forum, several L5P owners report that glow plug failures are "not uncommon" on the L5P.
Before You Order
- 2017-2023 L5P only. 2006-2016 trucks use the ACDelco 9G.
- Ream the bore. GM calls for reaming the glow plug bore every time an L5P glow plug is removed (GM bulletin 23-NA-032). Soot left in the bore can side load the new ceramic plug and cause premature failure. See the Duramax Glow Plug Reamer Tool.
- Do not use an air hammer. Our air hammer glow plug removal tools are not recommended for the L5P, because the ceramic tip could break off and fall into the cylinder.
Installation Tips
GM's TechLink articles on ceramic glow plugs include these handling steps:
- Inspect each glow plug you remove. If the tip is broken, inspect the cylinder for the tip or other debris.
- Measure the new plug's resistance before installing it. An open circuit means the tip is broken, and the plug should not be installed.
- Do not install a glow plug that has been dropped.
- Do not put grease or anti seize on the new glow plug, and do not use power tools to install it. Overtightening can crack the ceramic.
- Install the plug in line with the bore, since side load can crack the ceramic.
- Perform the glow plug learn procedure after replacement.
Installation Resources
- GM TechLink: Servicing Diesel Engines with Ceramic Glow Plugs
- GM TechLink: Ceramic Glow Plug Replacement
Related Parts
Frequently Asked Questions
Do I need to ream the bore?
Yes. On the L5P, GM calls for reaming the glow plug bore every time a glow plug is removed.
Can I use anti seize?
No. GM advises against grease or anti seize on ceramic glow plugs, because it can lead to overtightening.
How many do I need?
The 6.6L Duramax uses 8 glow plugs, one per cylinder. This listing is for one glow plug.
