Merchant Automotive High Performance Motor Mounts, Duramax | 2011 - 2016
Merchant Automotive
- SKU:
- 10550

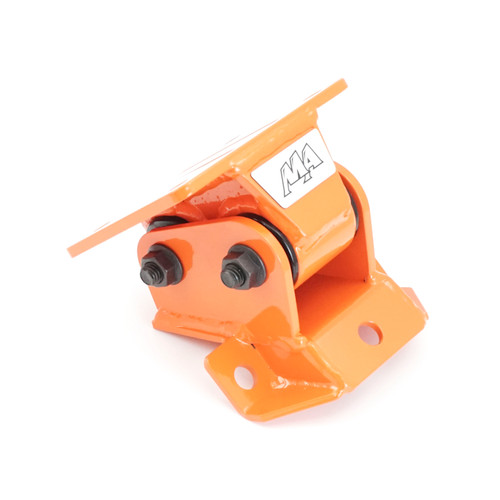

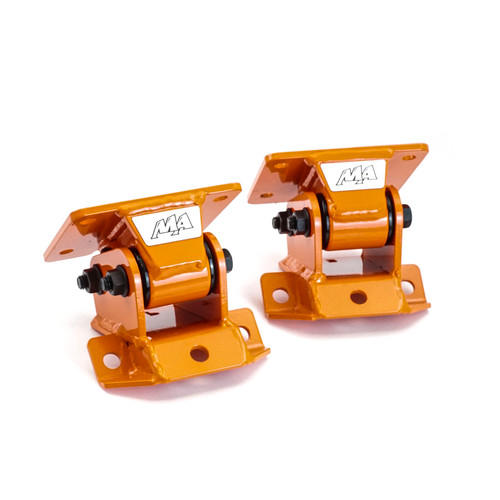

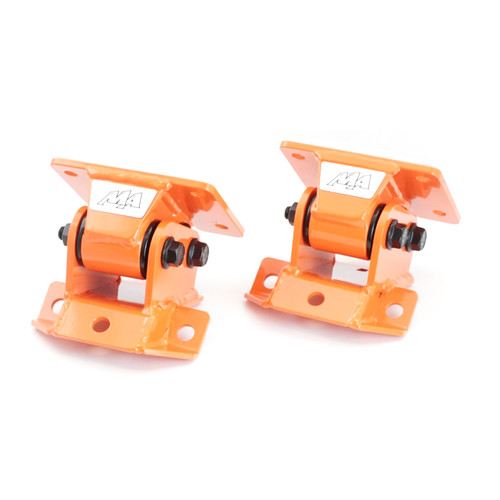

Stock motor mounts on 6.6L Duramax trucks can struggle under high stress conditions, often leading to excessive movement, tearing or failure. That lets the engine shift and can damage other components. Merchant Automotive High Performance Motor Mounts are engineered and built in house by Merchant Automotive in Holland, Michigan, as part of our focus on the Duramax and Allison platforms. They are made from welded plate steel with polyurethane bushings and are designed for higher horsepower and demanding use. This version fits 2011-2016 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L LML Duramax diesel.
Features
- Direct replacement for 2011-2016 LML trucks, no modification needed
- Two piece welded plate steel mounts joined with high grade fasteners
- Polyurethane bushings in place of the factory rubber
- Bright orange powder coated finish with the Merchant Automotive logo on each mount
- Stronger than factory, built for high horsepower and off road builds
What's Included
- (2) Merchant Automotive motor mounts, powder coated
- (8) Polyurethane bushings and (4) sleeves
- (4) 1/2-13 x 3.75 in. hex head bolts with (4) serrated nuts
- (14) M10 x 25mm flange head bolts
- (1) Red threadlocker
When to Replace
- Noticeable engine movement can indicate failing motor mounts. To check, open the hood, have someone rev the engine in park, and watch for excessive rocking. If you see significant movement, it's likely time for replacement.
- A factory mount can look fine at rest and still be worn out if the rubber has separated from the steel plates.
Before You Order
- More vibration at idle: this is a performance mount built to handle the extra stress of high horsepower builds. Compared with the factory rubber mounts, more in cab vibration can be present in park or at idle. This smooths out while driving, once the engine is above idle RPM.
- Want a factory style ride? See the OE Replacement Motor Mount Kit, 2011-2016.
- 2001-2010 trucks: see the Merchant Automotive Motor Mounts, 2001-2010.
Installation Tips
- Support the engine before removing the old mounts.
- Use threadlocker on all bolts and nuts.
Related Parts
- MA Motor Mount Bushings and Sleeves Replacement Kit
- Polyurethane Transmission Mount, Allison 1000, 2011-2019
- OE Replacement Motor Mount Kit, 2011-2016
Frequently Asked Questions
Will these make my truck vibrate more?
Some increase in vibration at idle is normal with a performance mount. It smooths out once the engine is above idle RPM.
Can I replace the bushings later?
Yes. The MA Motor Mount Bushings and Sleeves Replacement Kit fits all versions of our motor mounts.
Do these fit 2017 and newer trucks?
No. This version is for 2011-2016 LML trucks only.
