Rear Transfer Case Housing with Output Seal, 261XHD/263XHD | 2001-2007

The Merchant Automotive A11 Rear Transfer Case Housing is a direct replacement rear half for the NP261XHD and NP263XHD transfer case in 2001-2007 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L Duramax diesel (LB7, LLY and LBZ) and the 8.1L gas engine. GM 12478092 is the factory rear half number for these 2001-2007 6.6L and 8.1L XHD trucks. It is cast in magnesium alloy to OEM specs and is used to repair cases damaged by pump rub, or to replace the rear housing when installing a pump upgrade. It comes with the driven sprocket support bearing and slip yoke bushing already installed, plus a new rear output seal. No core charge.

Features

• Direct replacement A11 rear housing for the NP261XHD and NP263XHD
• Cast in magnesium alloy to OEM specs
• Driven sprocket support bearing and slip yoke bushing preinstalled
• Includes a new rear output seal
• Limited lifetime warranty against pump rub when installed with the Merchant Automotive Transfer Case Pump Upgrade Kit
• No core charge

What's Included

• (1) Magnesium rear case housing, 261XHD/263XHD (25903), with driven sprocket support bearing and slip yoke bushing installed

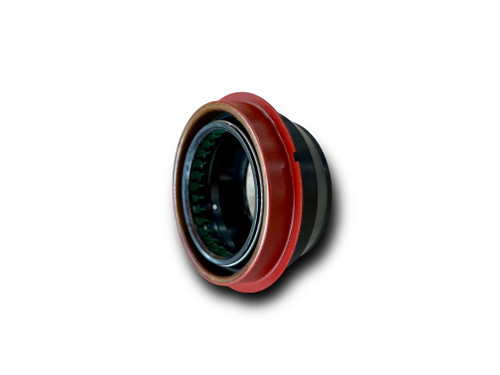

• (1) A13 rear output seal (22049)

Repairing or Preventing Pump Rub

If you are replacing the rear case to repair or prevent a pump rub failure, we recommend our Merchant Automotive Transfer Case Pump Upgrade Kit. The kit is made for 1998-early 2007 GM transfer cases that are susceptible to pump rub, and it is a good time to install it while the case is apart.

With the installation of the MA Transfer Case Pump Upgrade Kit, you will have a LIMITED LIFETIME WARRANTY against pump rub. The MA Lifetime Warranty only applies to installations with a new rear housing.

Before You Order

• XHD only: this housing fits the NP261XHD (manual shift) and NP263XHD (electronic shift) used in 2001-2007 Duramax and 8.1L gas trucks.
• Gas trucks: fits the 8.1L only. 6.0L gas trucks use the 261HD/263HD; see the 246/261HD/263HD Rear Case Half.
• Fluid not included: you will need 2 quarts to refill the transfer case. We recommend the Merchant Automotive Performance Transfer Case Fluid.
• Complete the refresh: we recommend adding the Merchant Automotive Magnetic Drain Plug Kit.

Installation Tips

• Replacing the rear housing requires disassembling the transfer case. Lock ring pliers are needed for disassembly.
• The rear bearing snap ring and the drain and fill plugs are not included. Transfer them from your old housing, or install the Merchant Automotive Magnetic Drain Plug Kit.

Installation Resources

• Merchant Auto Pump Upgrade Installation Instructions (PDF)
• Truck U Segment on the Merchant Auto Transfer Case Pump Rub Kit

Related Parts

• Merchant Automotive Transfer Case Pump Upgrade Kit, 1998-2007
• Transfer Case Magnetic Drain Plug Kit
• Merchant Automotive Performance Transfer Case Fluid, 2 Qt
• Transfer Case Bearing and Seal Kit, 263XHD
• Deluxe Bearing and Seal Kit, 261XHD

Frequently Asked Questions

Does it fit both the 261XHD and 263XHD?
Yes. This rear housing fits both the manual shift NP261XHD and the electronic shift NP263XHD.

Is the pump rub warranty included?
The limited lifetime warranty against pump rub applies when this new rear housing is installed with the Merchant Automotive Transfer Case Pump Upgrade Kit.

Is there a core charge?
No.

For warranty information, see our Warranty Policy.
