Transfer Case Front Output Seal Driver | 2001-2007

1 Review
SKU: 10325
$39.99

Earn 3999 Boost Points

Description

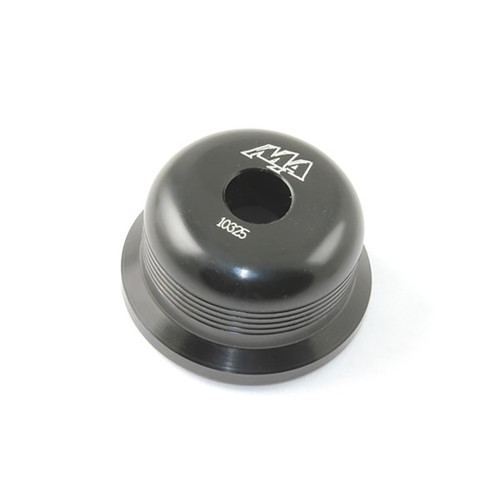

To make it easier to install a new front output shaft seal in a NP246, NP261HD, NP263HD, NP261XHD and NP263XHD transfer case the team at Merchant Automotive developed this CNC-machined billet aluminum seal driver. The driver features a durable anodized black finish with a laser etched logo and part number to make them easy to identify when sitting in your tool box.



Click here to view the Merchant Automotive Transfer Case Seal Driver kit for 1998-2007 GM transfer cases.



Click here to view the Merchant Automotive Transfer Case Rear Output Seal Driver.


Click here to view the Merchant Automotive Transfer Case Front Output Seal Driver for 2007.5-2019 trucks.


Click here to view the Merchant Automotive Transfer Case Front Input Seal Driver.



FAQ:

What kind of hammer should I use with the seal driver?

For best results use a rubber or plastic hammer such as a dead-blow hammer. Do not use a metal hammer as the tool could be damaged.

How do I set the seal depth while using the seal driver?

The Merchant Automotive seal drivers are precision machined with positive stops to properly index and set the depth on your seals when properly used.


Can I replace the front output shaft seal with the transfer case installed in the vehicle?


Yes, after removing the front driveshaft the seal can be removed and replaced without removing the transfer case from the vehicle. Some people feel that it can be easier to remove the transfer case and replace the seals on a workbench though.

Application


YEAR
VEHICLE
CHASSIS
TRANSFER CASE MODEL NUMBER
1998-2007
SILVERADO/SIERRA
1500, 1500HD, 2500, 2500HD, 3500
NP246, NP261HD, NP263HD, NP261XHD, NP263XHD
1999-2007
ESCALADE
-
NP246
2002-2007
AVALANCHE
1500, 2500
NP246, NP263HD
1998-2007
SUBURBAN/YUKON XL
TAHOE/YUKON

1500, 2500
NP246


2500HD 3500 Silverado Sierra 6.6L V8 Duramax diesel engines:

LB7, LLY, LBZ


Years

 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, early 2007

Ratings & Reviews

1 Review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

Front Seal Driver

Tony - | 10/17/2019 12:01:00 pm

The front output shaft seal on many NP transfer cases, GM part number 12474947, is a two piece design which requires driving the outer flange and the inner sleeve at the same time. This tool from Merchant Automotive does the work of the OE Kent Moore tool J-43484 and is less expensive than it or any other option I've found. It is made of solid metal assuming aluminum and has a center hole if you want to attach a driver handle, though it works fine on its own.
