Up Pipe to Exhaust Manifold Gasket, L5P | 2017-2026

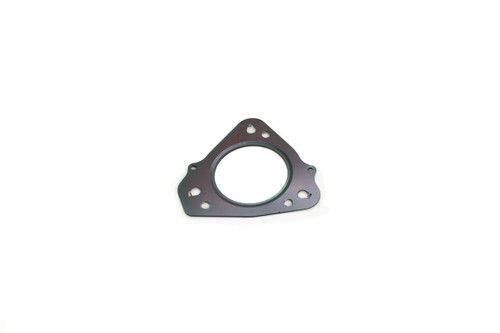

This gasket seals the turbo up pipe to the exhaust manifold on the 2017-2025 6.6L Duramax L5P. GM lists it as the exhaust turbocharger inlet pipe gasket, part number 12688018. Ours is made by Elring and replaces GM 12688018 (formerly 12676609). The L5P uses two of these, one where each up pipe bolts to its exhaust manifold, and they're sold individually. A leaking up pipe gasket is an exhaust leak ahead of the turbo, which costs boost and can show up as a ticking sound and soot at the joint.
Key Features
- Replaces GM 12688018 (formerly 12676609)
- Elring part number 455.492
- Seals the up pipe to the exhaust manifold
- Sold individually; two required per engine
Benefits
Exhaust gaskets are crushed when they're torqued and don't reseal once they come apart. Install new ones any time the up pipes, manifolds or turbo come off, so you don't have to go back in for a leak. Replace if worn or damaged. Commonly replaced at the same time: Up Pipe Bolt Kit 3 Pack, Duramax L5P | 2017 - 2025.
Frequently Asked Questions
How many do I need?
Two per engine, one at each exhaust manifold. They're sold individually, so order two to do both sides.
Is there a kit?
Yes. Our L5P Up Pipe Install Kit | 2017 - 2026 includes these gaskets.
Is this a genuine GM gasket?
No. It's made by Elring and replaces GM 12688018.
Fitment

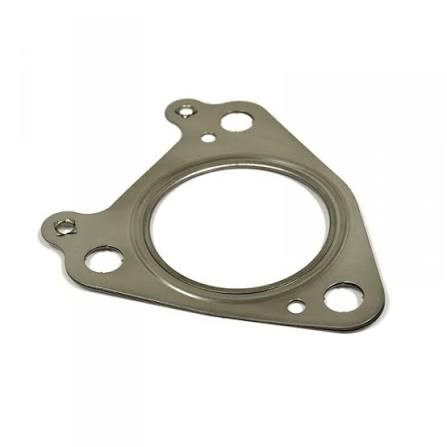

Fits 2017-2026 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD with the 6.6L Duramax L5P. Two required per engine. For 2001-2016 Duramax engines, use the Exhaust Manifold To Up Pipe Gasket, Duramax | 2001 - 2016.
What's Included
- (1) Up pipe to exhaust manifold gasket
For warranty information or to submit a claim, see our Warranty Form.
