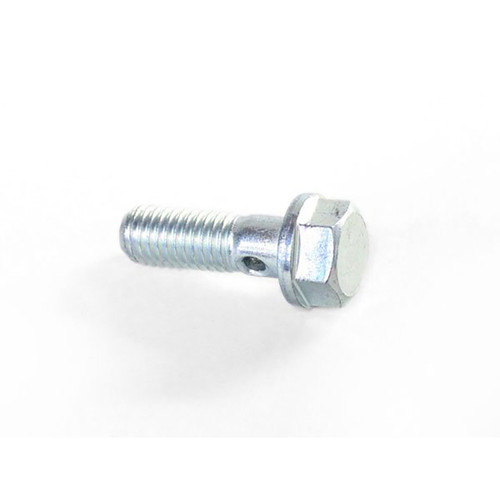

This genuine GM Fuel Injector Return Line Bolt secures the end of the fuel injector return rail to the cylinder head, under the valve cover, on 2001-2004 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the LB7 6.6L Duramax diesel. GM catalogs it as the fuel injector fuel return pipe fitting. GM part number 97257826, which replaces 94058830.
Features
- Genuine GM part 97257826
- Replaces GM 94058830
- Secures the injector return rail to the cylinder head
- Located under the valve cover at the end of the return rail
- Fits the 2001-2004 LB7 Duramax
Why Replace It
On the LB7, the injector return rail runs under the valve covers and carries return fuel from the injectors. Bolts in this area can be damaged, stripped or lost during injector replacement. A damaged bolt or a poor seal at the return rail can cause return fuel leaks under the valve cover, which can lead to fuel in the oil.
Installation Tips
- Install new sealing washers on the return rail fittings any time they are loosened.
- Clean the threads in the cylinder head before installing the bolt.
- Tighten to factory torque specs. Do not overtighten.
- Replace the lower valve cover gasket if it is damaged during the job.
Related Parts
- Injector Return Line Seals Kit, LB7
- Injector Return Line Small Banjo Seal, 3 Pack, LB7
- Injector and Return Line Seal Kit, LB7
- Lower Valve Cover Gasket, LB7
- Basic Fuel Injector Install Kit, LB7
Frequently Asked Questions
Where is this bolt located?
It is at the end of the fuel injector return rail under the valve cover, where the rail bolts into the cylinder head.
Do I need new seals when I replace this bolt?
Yes. Replace the return line sealing washers any time the fittings are loosened. Our Injector Return Line Seals Kit includes them.
Does this fit the 2004.5 and newer LLY?
No. The LLY and later engines use a different injector return system. This bolt fits the 2001-2004 LB7 only.
