Allison 1000 T1 & T6 Bearing, Late Design | 2001-2019

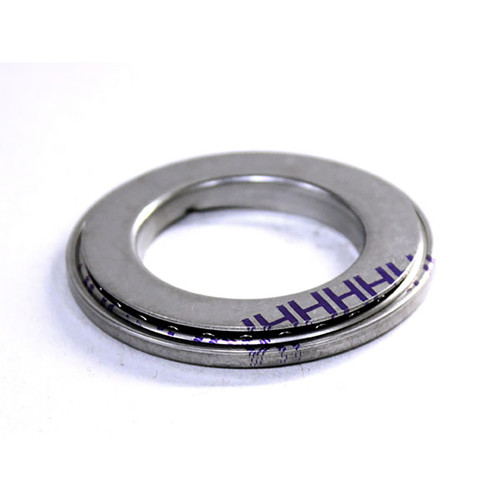

This is the Allison late-design thrust bearing (part number 29539501, also sold through GM Genuine Parts) for the T1 and T6 positions in the Allison 1000 transmission behind the 6.6L Duramax. It measures 2.12 in outside diameter by 1.26 in inside diameter and is used in 2004 and newer Allison transmissions. Each transmission uses two, one at T1 and one at T6.
Key Features
- Allison / GM part number 29539501
- Late-design T1/T6 thrust bearing
- Outside diameter: 2.12 in (53.85 mm)
- Inside diameter: 1.26 in (32.13 mm)
- Two required per transmission (T1 and T6)
- Sold individually
Benefits
Thrust bearings carry the axial load between the rotating parts inside the Allison, and a failed bearing can lead to expensive planetary damage. A proper overhaul replaces all of the bearings. On 2001-2005 5-speed transmissions, measure the old T1 and T6 bearings before ordering, because these units can use either the late design or the early design. For a full rebuild, see the Allison 6 Speed Bearing Kit, LBZ, LMM, LML, L5P | 2006 - 2019.
Fitment
Fits the Allison 1000 transmission in 2001-2019 Chevrolet Silverado and GMC Sierra 2500HD and 3500 with the LB7, LLY, LBZ, LMM, LML or L5P Duramax, including 2007 Classic body trucks. It's the standard T1/T6 bearing for 2006-2019 6-speed transmissions. If your 2001-2005 5-speed has the early-design bearing, use the Allison T1, T6 Bearing (29531089).
What's Included
- (1) Allison 1000 T1/T6 thrust bearing, late design
