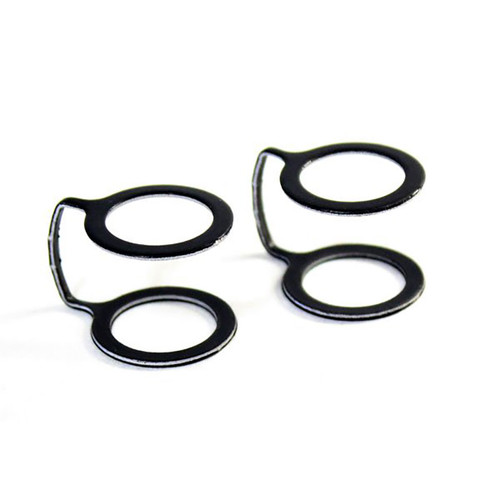

These banjo seals fit the fuel line banjo bolts at the FICM (fuel injection control module) on 2001–2005 LB7 and LLY 6.6L Duramax Silverado and Sierra 2500HD/3500HD trucks. On these engines, diesel fuel flows through the FICM to keep its electronics cool, so its fuel line is connected with banjo bolts sealed by a washer on each side. The seals crush when tightened and won't reliably seal a second time. Any time the FICM fuel line banjo bolts are loosened, for FICM service, fuel hose replacement or engine work, install new seals to prevent fuel leaks.
Key Features
- Banjo seals for the FICM fuel line banjo bolts
- 2 per package: one for each side of a banjo fitting
- Fits LB7 and LLY Duramax
Benefits
- Prevents fuel leaks at the FICM after service
- Inexpensive insurance whenever the banjo bolts are removed
- Keeps the fuel that cools the FICM where it belongs
Installation Note
Banjo seals are one-time-use. Always replace them when a banjo bolt is loosened or removed, and clean both sealing surfaces before installing the new seals.
Fitment
- 2001–2005 Chevrolet Silverado 2500HD / 3500HD 6.6L Duramax (LB7, LLY)
- 2001–2005 GMC Sierra 2500HD / 3500HD 6.6L Duramax (LB7, LLY)
Replacing the fuel hose too? See our Fuel Filter Head to FICM Hose for 2001–2004 LB7 or 2004.5–2005 LLY, and the FICM Bushing.
What's Included
- (2) Fuel line banjo seals
