The Merchant Automotive Rubber Fuel Hose Kit replaces all six rubber low-pressure fuel hoses on 2001-2004 Chevy Silverado and GMC Sierra 2500HD and 3500HD trucks with the LB7 6.6L Duramax diesel that were built to California specifications. It includes our molded hoses built for diesel fuel and the genuine GM CP3 pump front fuel feed hose used on California trucks.
California trucks only. This kit differs from our standard LB7 kit by one hose, the CP3 pump front fuel feed hose. For all other LB7 trucks, use the Rubber Fuel Hose Kit, 11000.
Features
- Complete set of six rubber fuel hoses
- Five Merchant Automotive molded hoses built for diesel fuel
- Genuine GM 97302699 CP3 pump front fuel feed hose
- Molded to the factory shape for a direct fit
- Clamps are not included. Reuse your factory clamps or install new ones.

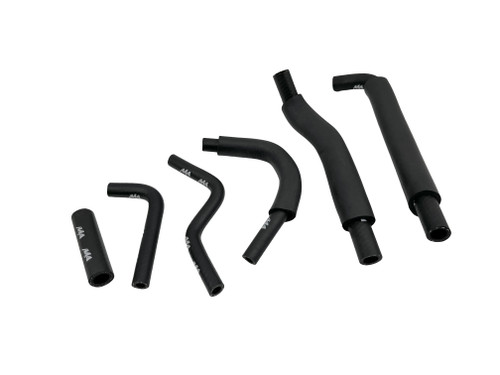

What's Included
- (1) Fuel Feed Hose
- (1) Cold Start Valve Hose
- (1) Fuel Filter Head to FICM Hose
- (1) Fuel Filter Head Outlet Hose
- (1) CP3 Pump Front Fuel Feed Hose, genuine GM 97302699
- (1) CP3 Injection Pump Return Hose
Why Replace Them
Factory rubber fuel hoses harden, swell and crack with age and engine heat. A failing hose can leak fuel, leave a diesel smell under the hood, or let air into the fuel system. Air in the fuel can cause hard starts, rough running or loss of power. When one hose fails, the others are usually close behind, so replacing the full set at once saves you from chasing leaks one hose at a time.
Installation Tips
- Disconnect the batteries before removing any fuel hoses.
- Replace one hose at a time to keep the routing correct.
- Inspect the clamps and replace any that are rusted or weak.
- Prime the fuel system after installation and check every connection for leaks.
Related Parts
- Rubber Fuel Hose Kit, 11000 (all other LB7 trucks)
Frequently Asked Questions
How do I know if I need this kit or the standard LB7 kit?
Check the label under the hood. If your truck was built to California specifications, use this kit. If not, use the Rubber Fuel Hose Kit, 11000. You can also compare your CP3 pump front fuel feed hose to the GM 97302699 hose.
Are clamps included?
No. Reuse your factory clamps if they are in good condition, or install new ones.
Does this fit Kodiak or TopKick trucks?
No. This kit fits 2001-2004 Silverado and Sierra 2500HD and 3500HD pickups only.
Can I buy the hoses individually?
Yes. Every hose in this kit is also sold separately. Use the links in the What's Included list.
For warranty information or to submit a claim, see our Warranty Form.
