Wilwood Wilwood | TC6R Front Brake Kit, 16.00" Rotor | 2001-2010

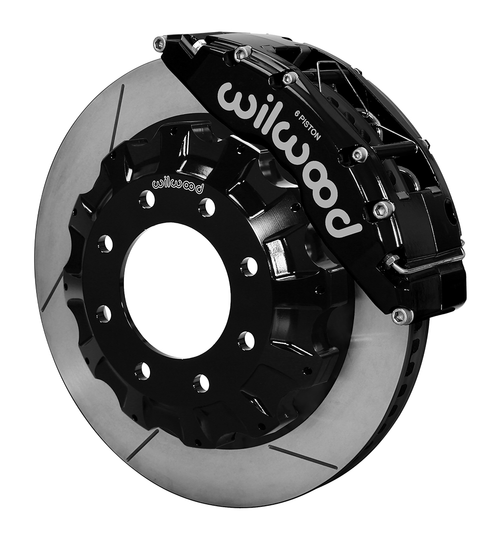

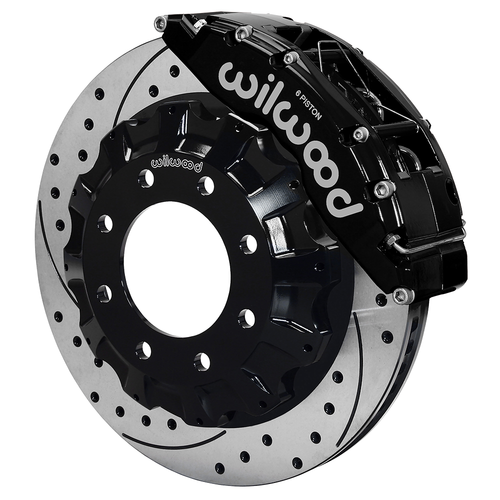

TC6R Big Brake Kit

The TC6R Big Brake Kit is purpose-built to deliver unmatched braking capacity for trucks and SUVs equipped with 20" and larger wheels and tires. Featuring high-efficiency TC6R calipers, large 16" directional vane rotors, and high-friction BP-10 brake pads, this system is engineered to handle the increased rotating mass of oversized wheel and tire combinations.

Key Features

• TC6R calipers provide high clamping efficiency for maximum stopping power
• Large 16" directional vane rotors improve heat dissipation and performance
• High-friction BP-10 brake pads for increased braking response
• Designed for trucks and SUVs with 20" and larger wheels
• Engineered for high GVW vehicles and towing applications
• Fully compatible with OEM master cylinder output
• Retains full ABS system functionality

Benefits

This brake kit delivers the stopping power needed to safely control heavier, upgraded wheel and tire setups. It enhances braking confidence, reduces fade under load, and improves performance for towing, hauling, and high-weight applications.

Fitment

• Chevy Silverado 2500HD / GMC Sierra 2500 HD 2001-2010
• Chevy Silverado 3500HD / GMC Sierra 3500HD 2004-2010
• See 220-8998 or 220-10980 for corresponding Hose Kits

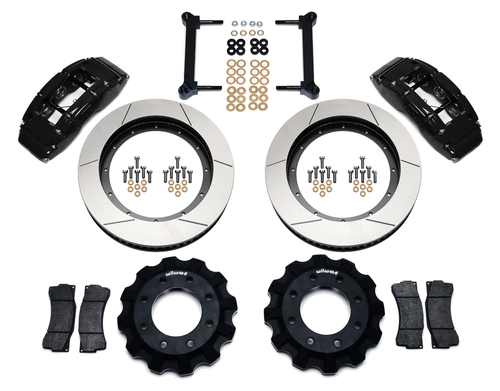

What's Included

• TC6R brake calipers
• 16" directional vane rotors
• BP-10 high-friction brake pads
• Mounting hardware
• Installation instructions
