Allison 1000 C3/C4 Piston Return Spring | 2011-2019

Allison 1000 C3/C4 Piston Return Spring | 2011-2019

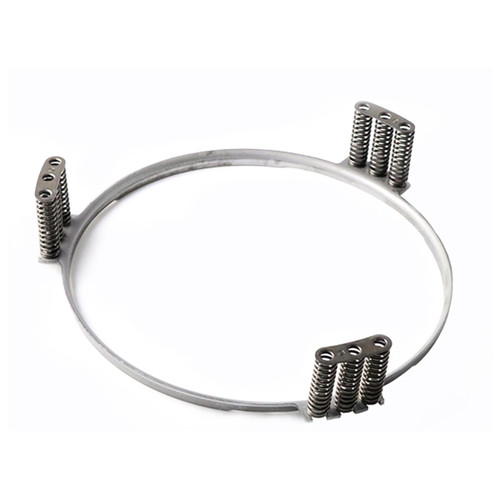

This is the genuine GM/Allison 2-6 and 3-5 reverse clutch piston return spring (part number 29546698) for the C3 and C4 clutches in the Allison 1000 transmission behind the 2011-2019 LML and L5P 6.6L Duramax. It pushes the clutch piston back when apply pressure is released, so the clutches release cleanly between shifts.

Key Features

• GM/Allison part number 29546698
• 2-6 (C3) and 3-5-Reverse (C4) clutch piston return spring
• Steel construction
• Inside diameter: 8.35 in (212 mm); outside diameter: 8.75 in (222.15 mm)
• Height: 3.75 in
• Sold individually

Benefits

A weak or broken return spring can keep a clutch from fully releasing, which causes drag and premature clutch wear. During an Allison rebuild, it's an inexpensive part to replace while the C3/C4 clutch pack is apart. Replace if worn or damaged.

Fitment

Fits the Allison 1000 6-speed transmission in 2011-2019 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD with the LML or L5P Duramax.

What's Included

• (1) Allison 1000 C3/C4 (2-6 and 3-5-R) clutch piston return spring
